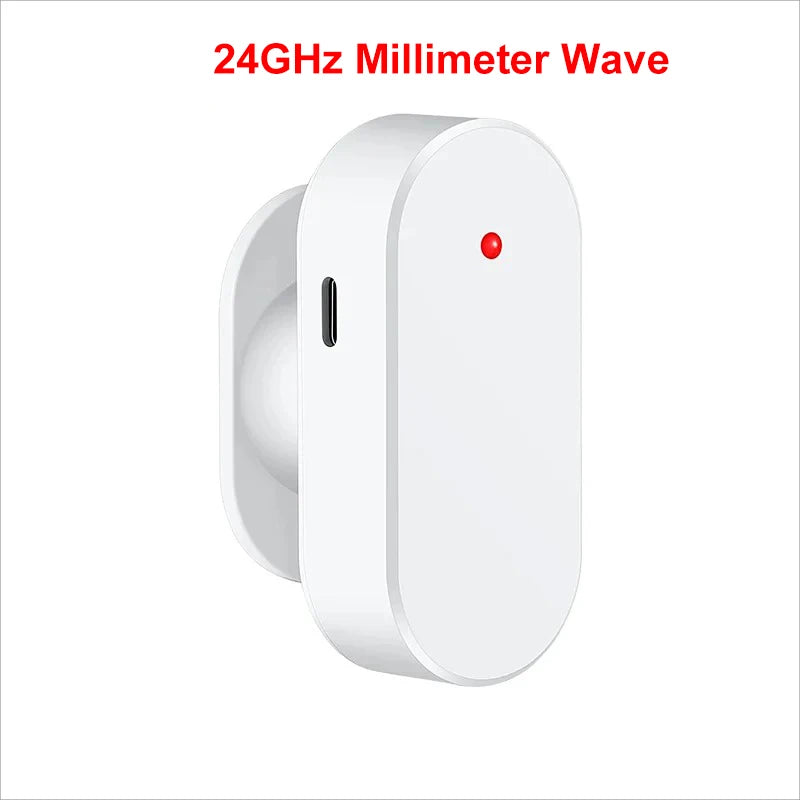

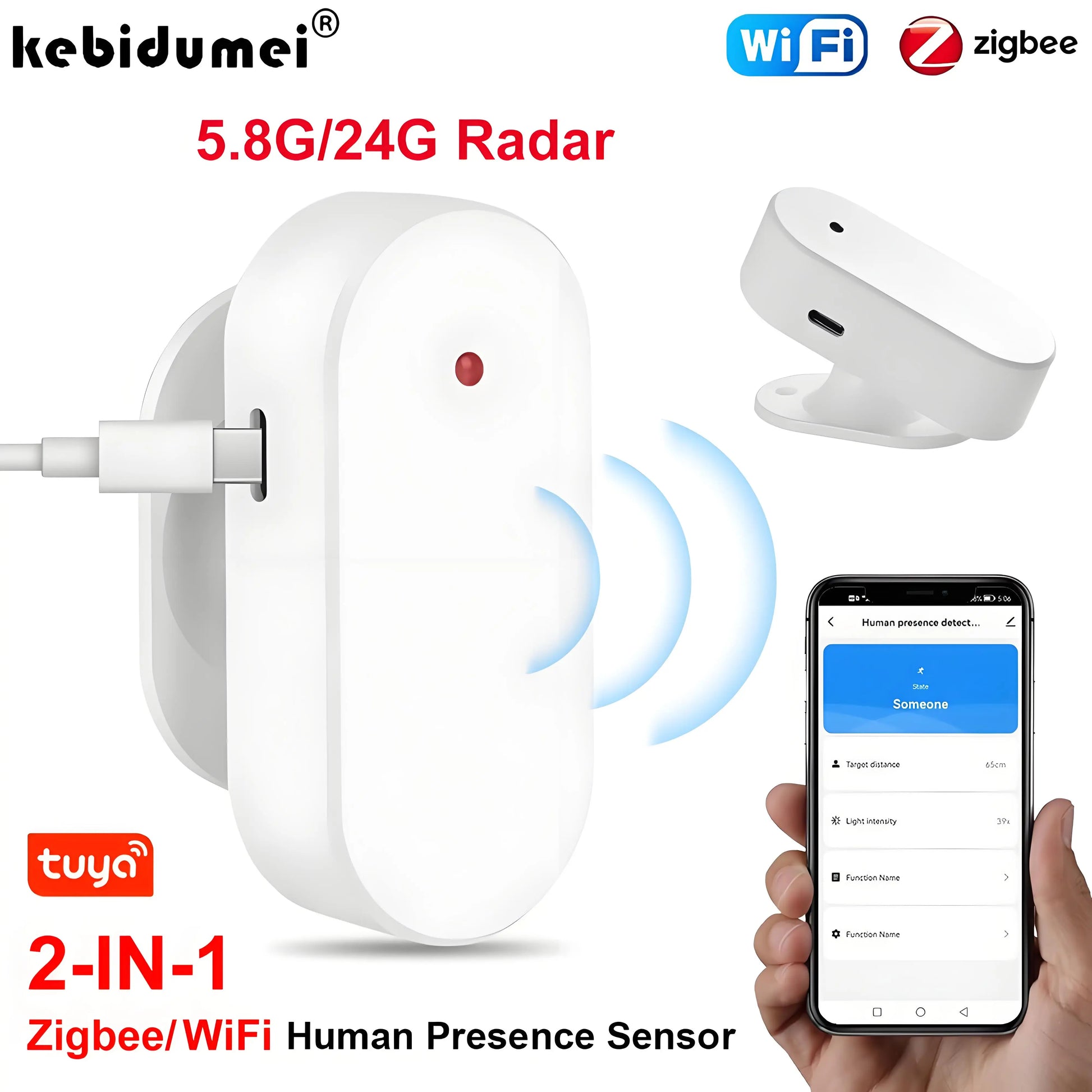

2-IN-1 Tuya Wifi Zigbee Human Presence Detector 5.8G/24G Radar Distance Detection Smart Human Body PIR Sensor for Home Assistant

Specification

Product name: human presence detector

Wireless fidelity: Zigbee3.0/tuya WiFi (optional)

Millimeter wave module: 24GHZ/5.8GHZ optional.

Temperature range:-10 ~ 55℃

Humidity range: 0% ~ 99% RH

Working voltage: DC5V/1A (adapter power supply)

Light detection value: 0~3000 LUX

Static detection distance: 0 ~ 6m

Motion detection distance: 0 ~ 10m.

Induction angle: > 90 degrees

Wireless distance: ≥ 100m (open distance)

Product net weight: 27g

Product size: 72×32×38mm

Package Content

Human presence detector ×1

Product description ×1

Seamless double-sided tape ×1

Mounting bracket ×1

USB power cord ×1

（5.8G radar has a shorter detection distance (which basically meets the distance requirements of daily household use). However, 24G radar has higher range detection accuracy (± 10cm); The delay time is relatively accurate; Higher recognition accuracy; Higher unmanned preprocessing speed; And the unique FMCW variable frequency modulation wave fast algorithm.

When movement is detected, notifications are pushed to the app

and scenesare created that work with other smart sensors.

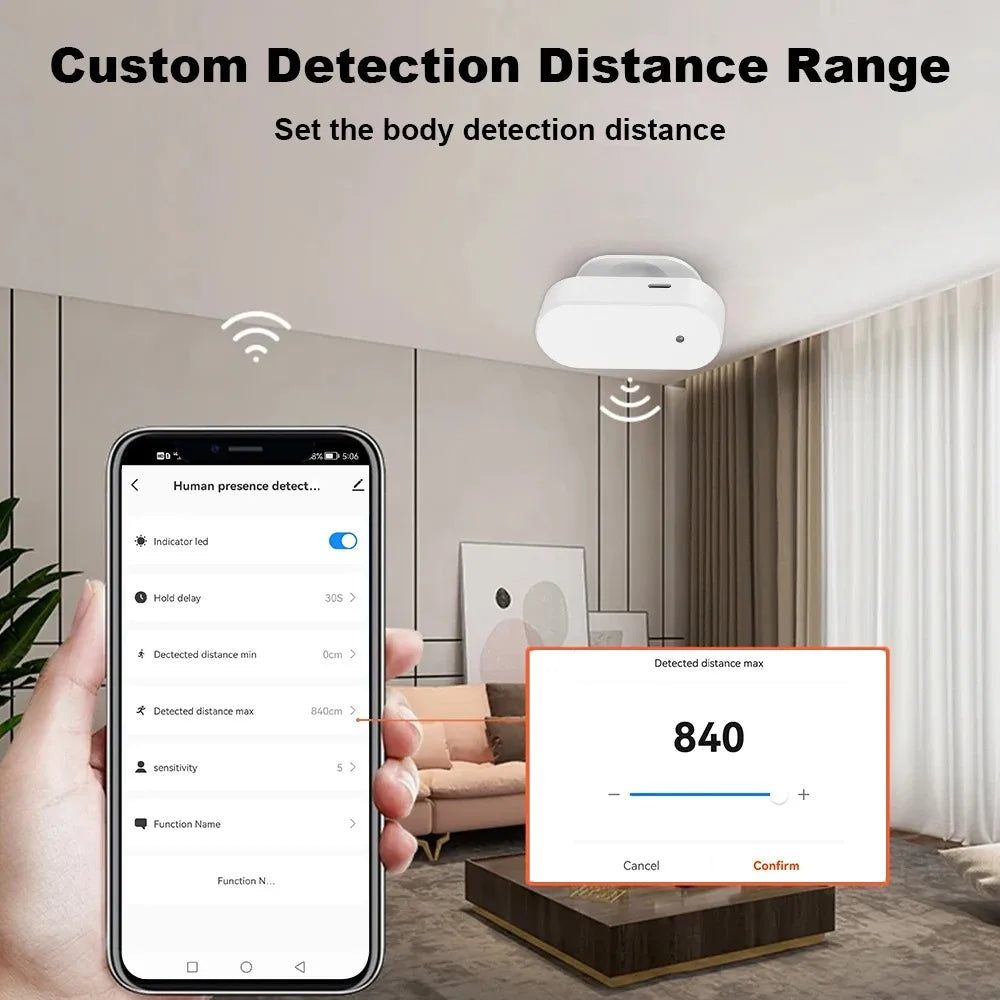

Custom Detection Distance Range

Set the body detection distance

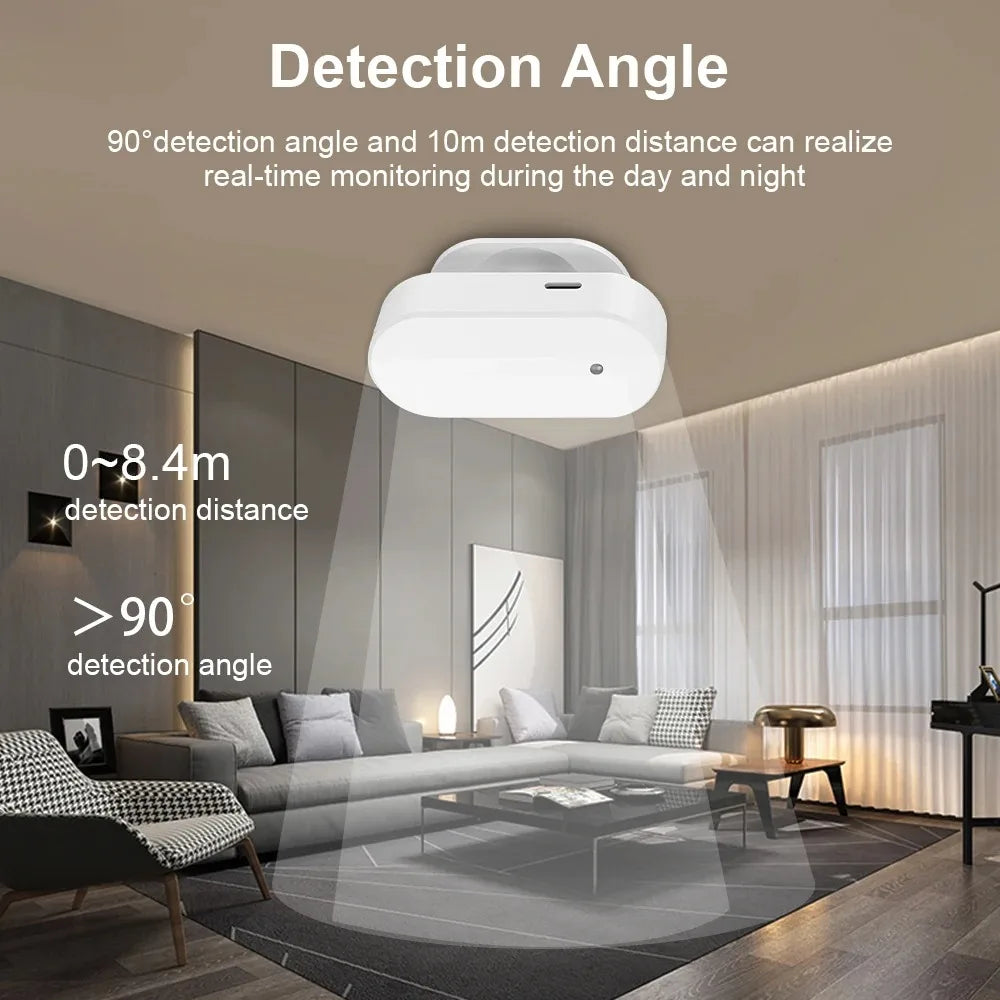

Detection Angle

90'detection angle and 10m detection distance can realize

real-time monitoring during the day and night

High precision radar detection

Micro motion detection, detect the movingand non-moving personpresence,beam detection.

Quickly set radar parameters

Optionally set micro/macro motion detection distance and sensitivity to meet your different requirements for the target area.

More Accuracy Functional

Detection Sensor A powerful smart sensor for human static and human micro motion specially.
