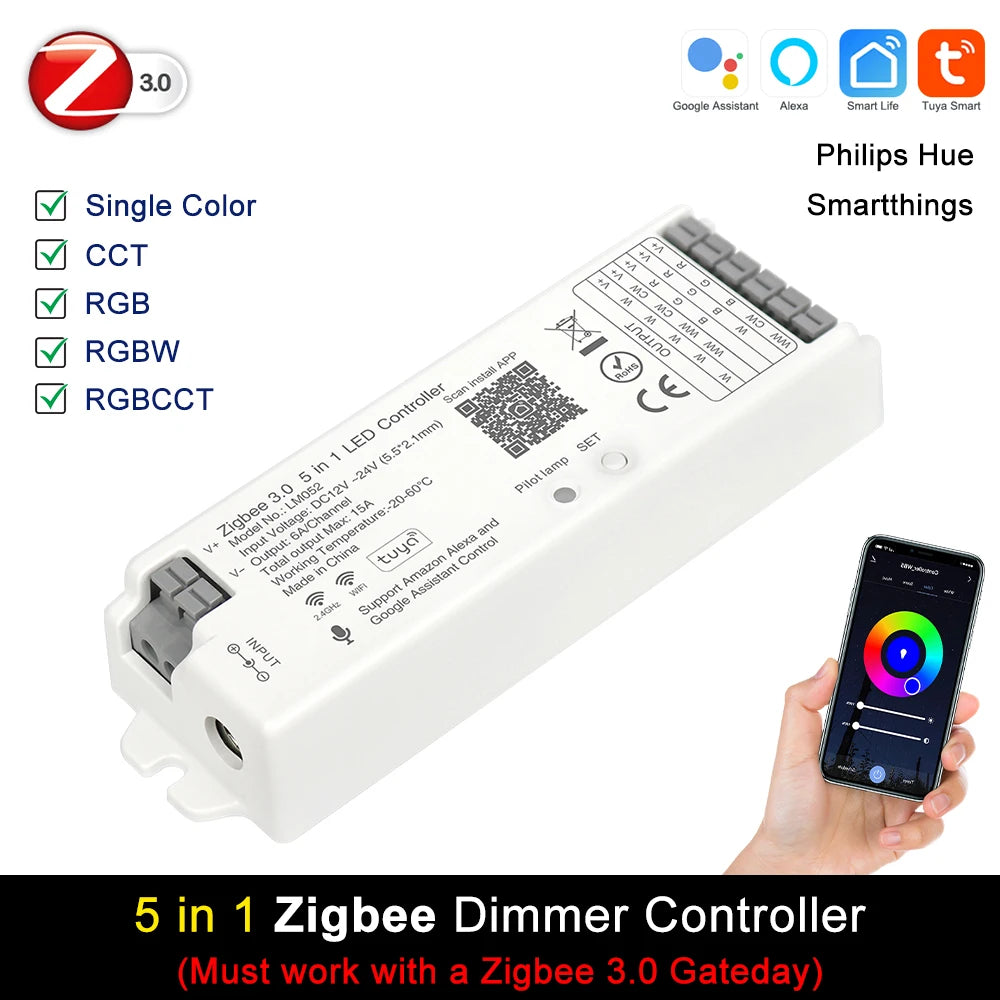

5 in 1 Controller Tuya Zigbee Wifi Smart LED Dimmer 2.4G RC Support Alexa Google Assistant for 12V 24V CCT RGB RGBCCT COB Strip
In stock
$68.87
$
Product details
Parameters
Product name: 5 in 1 LED Dimmer
Working Voltage: DC12~24V
Ways of control: APP or remote controller
Connected methods: WiFi-IEEE 802.11b/g/n 2.4GHz Bluetooth mesh, Zigbee 3.0
Output: 6A/Channel ( Total Output Max. 15A)
Support LED strip type: all PWM (single color, CCT, RGB, RGBW, RGBCCT) SMD/ COB LED strips
Working Temperature: -20~60°C
APP name: Smart Life, or Tuya
Notice
The [Zigbee Dimmer] must work with a ZIgbee 3.0 Gateway (Zigbee Hub). If there's no Zigbee Hub in your home, can't connect the controller to the Internet.
If you don't have Zigbee Hub, can get it by click:
Setting Manual
[Link and Unlink to Device]:

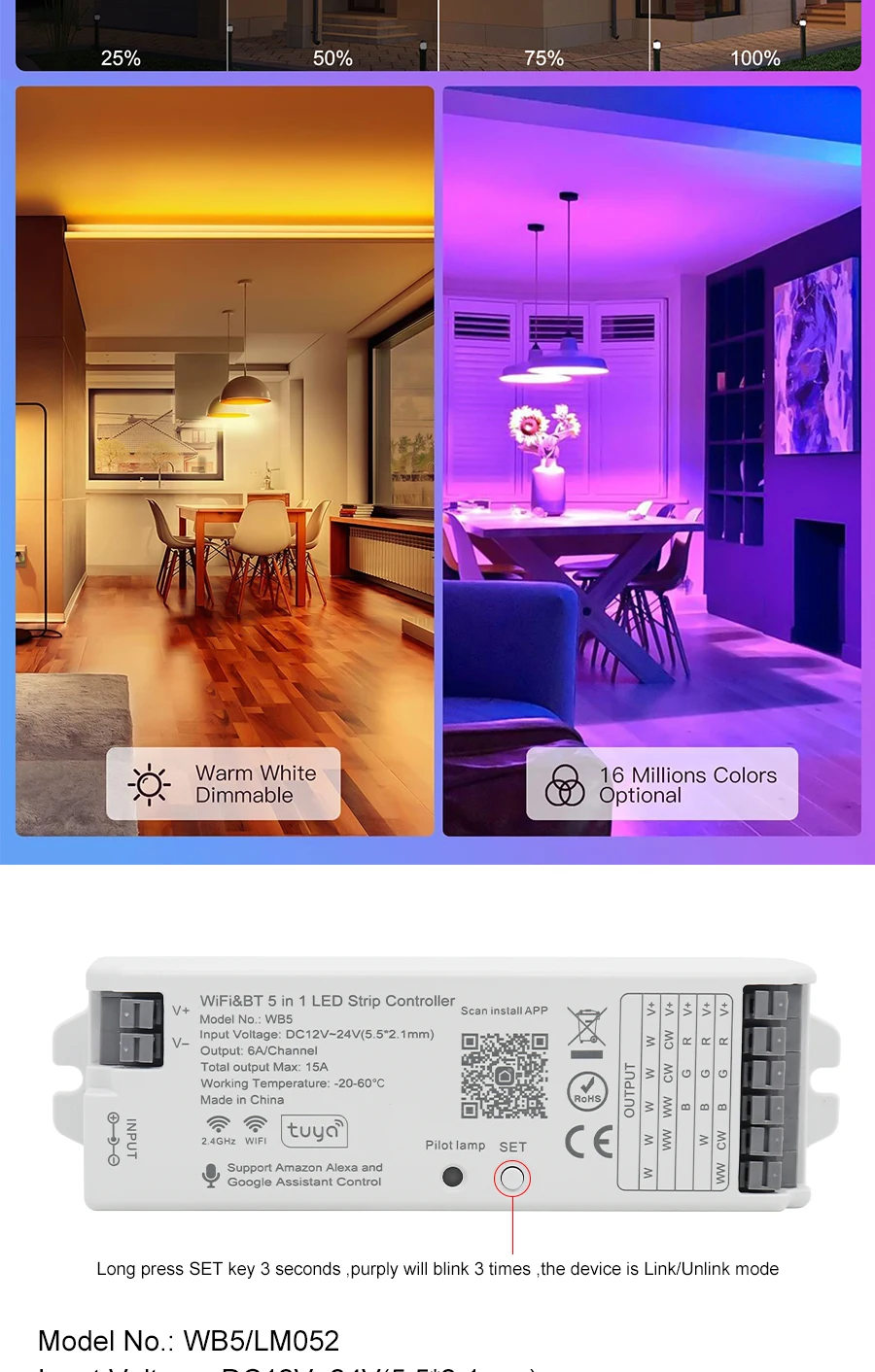

Long press "SET" 3 seconds, when the purple pilot lamp blinking, the device go into Link/Unlink mode and Smart Link mode.
( Note: Bluetooth control will be available after linking by WiFi APP).
[Switching Output Mode]:
Short press "SET" button to switch the output mode.
The Pilot lamp flickering means switching successfully.

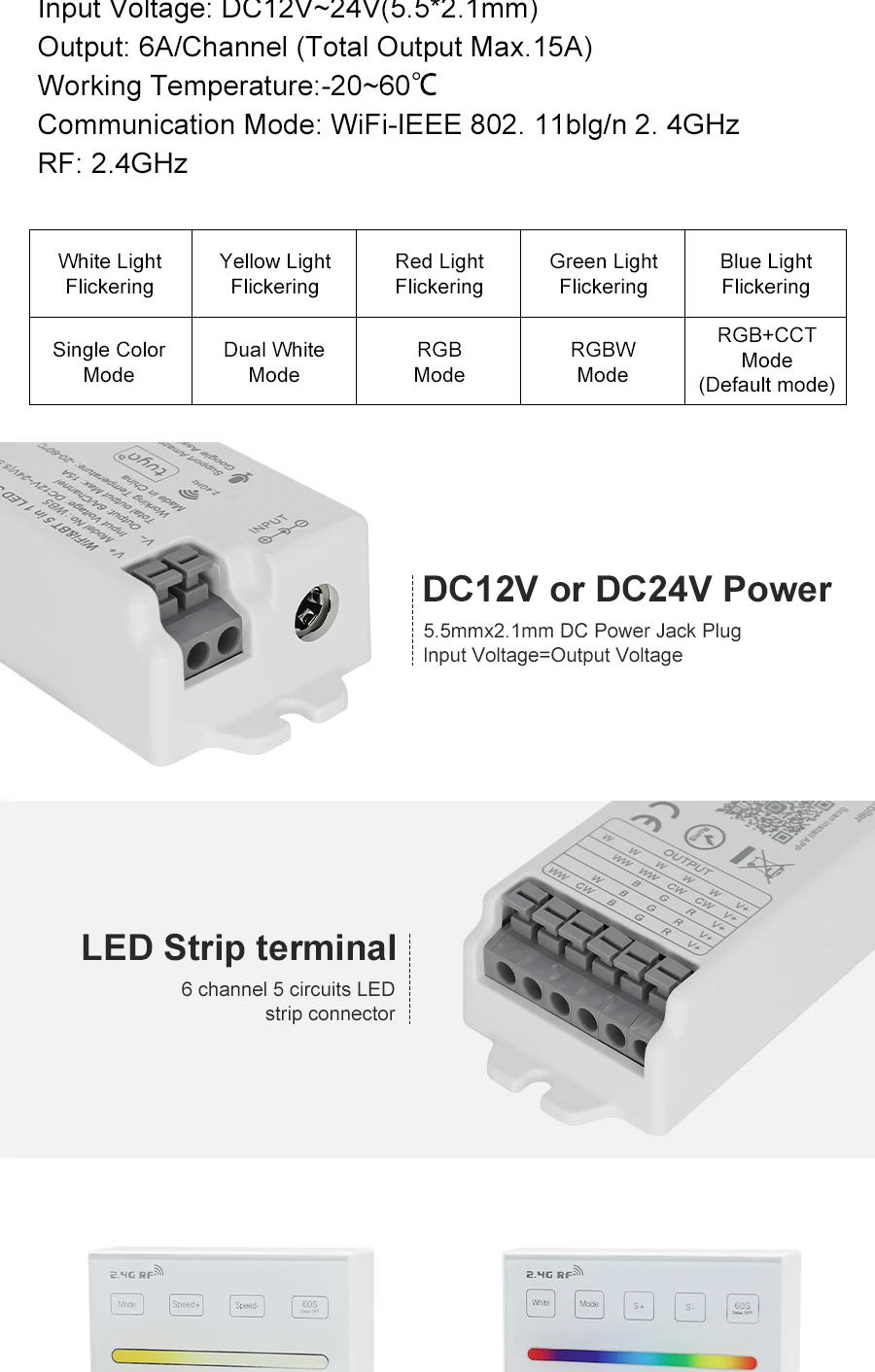

Different colors flickering correspond to different output mode:
White -> single color mode,
Yellow -> CCT mode,
Red -> RGB mode,
Green -> RGBW mode,
Blue -> RGBCCT mode.
Attention Please
1. Please check whether the input voltage of the constant voltage power supply is in accordance with the controller, and please check the connection of both the cathode and anode.
2. The working Voltage is DC12~24V, the controller will be broken if the voltage is higher than 24V.
3. Non-professional user cannot dismantle the controller directly, otherwise, it may cause fire and electric shock.
4. The working temperature is-20~60°C. Do not use the device to direct sunlight, moist and other high temperature area.
5. Please do not use controller around the metal area and high magnetic field, otherwise, it will badly affect the control distance.
Features
1. High performance, low power consumption Bluetooth microprocessor.
2. Compatible with 12 kinds of type of LEDs.
3. Support App control, 2.4G touch remote control and 2.4G touch 86-type control panel.
4. The RB and RC remote control panel can be set up for zone-control (can be divided into 4 zones), or unified control (ALL).
5. Support to set kinds of on/off animations and the default power-on state.
6. Support for modifying device name, color order correction and setting timers.
7. Support 3 kinds of music capture modes: cell phone microphone, player streaming, on-board microphone.
8. 5 major control pages in the App: dynamic, static, music, custom and setting. select different types of LED correspond to different App page content.
