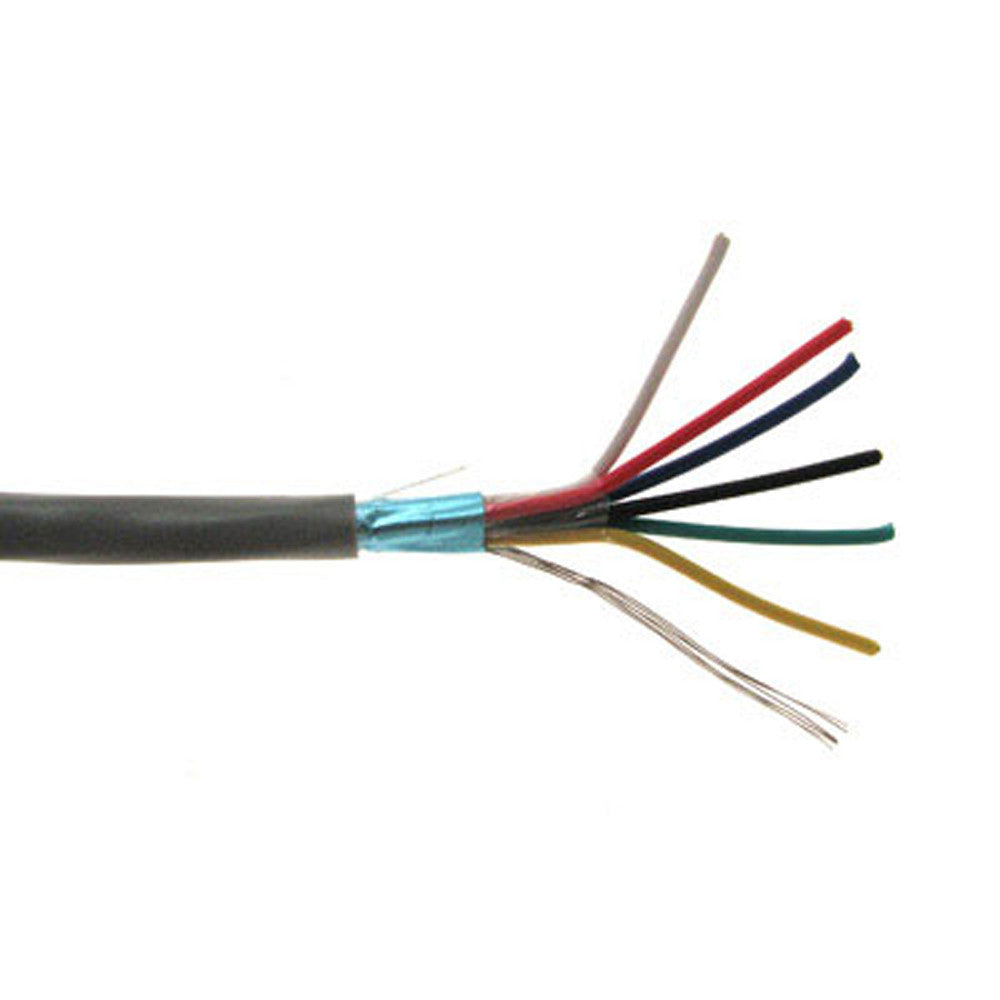

Communication Security Wire, 18AWG, 6C, Shielded with Drain, 1,000 Ft.

Name: Communication Security Wire, 18AWG, 6C, Shielded with Drain, 1,000 Ft.
Brand: Ezlo - Property Empowered
SKU: WR186SHGY
Price: 526.95 USD
Availability: InStock

Communication Security Wire, 18AWG, 6C, Shielded with Drain, 1,000 Ft.

Product variants

$526.95

Quantity

The Communication Security Wire 18AWG 6C, Shielded with Drain, 1,000 Ft is the perfect addition to any security system. Made with 18AWG, 6C, Shielded with Drain, and measuring 1,000 feet in length, this wire ensures that your communication lines are protected from interference and eavesdropping.

With its heavy-duty shielding, this wire guarantees that your transmissions remain private and secure. The drain wire allows for easy termination and grounding, making installation a breeze. Whether you're setting up a new security system or upgrading an existing one, the Communication Security Wire is the reliable choice for your communication needs.

Product Specs

Manufacturer Part #	18/6SH-GY
Marking	STRUCTURED CABLE PRODUCTS – – – P/N 18/6SH – – – 6 COND 18 AWG STRANDED SHIELDED TYPE CMR/CL2R FT4 75C — (UL) OR C(UL) E198137 CE EU RoHS EC ZONE/DEVICE A B C D E 0 1 2 3 4 5 6 7 8 9 XXXXFT Regulatory: UL 444, UL 13, NEC Article 760, NEC Article 725
Application	Security Cable for Outdoor
Conductor Material	Stranded Bare Copper
Size	18AWG X 6C
Construction	16/0.24mm ±0.004mm
Insulation Material	PVC
Min. Thickness	0.27mm
Avg. Thickness	0.30mm
Diameter	1.70mm ±0.05mm
Colors	Black, Red, White, Green, Blue, Brown
Shield Core Wrap	PE Tape
Drain Wire (TC)	7/0.20 ±0.004mm
Shield	AL Foil
Jacket Material	PVC
Min. Thickness	0.50mm
Avg. Thickness	0.55mm
Diameter	6.50mm ±0.10mm
Rip Cord	Nylon
Color	Gray
Rating	75°C 300V
Conductor Resistance	Max 24.4ohm/km at 20°C
Dielectric Strength	Min AC1.5KV
AC Leakage Current Through Overall Jacket	AC 1500V Twists Per Foot: 3.0
Cold Bend Test	-20°C 4 hours; No Cracking
Insulation Unaged	Tensile Strength: 13.8Mpa Elongation: 150 percent Aged: Tensile Strength: 11.7Mpa (100°C 168h) Elongation: 80 percent (100°C 168h)
Jacket Unaged	Tensile Strength: 13.8Mpa Elongation: 150 percent Aged: Tensile Strength: 11.7Mpa (100°C 168h) Elongation: 80 percent (100°C 168h)
