TUYA Smart Zigbee Curtain Switch Module Supports 2 Way Control Blinds Roller Shutter Motor Works with 2MQTT Alexa Google Home

Product version comparison

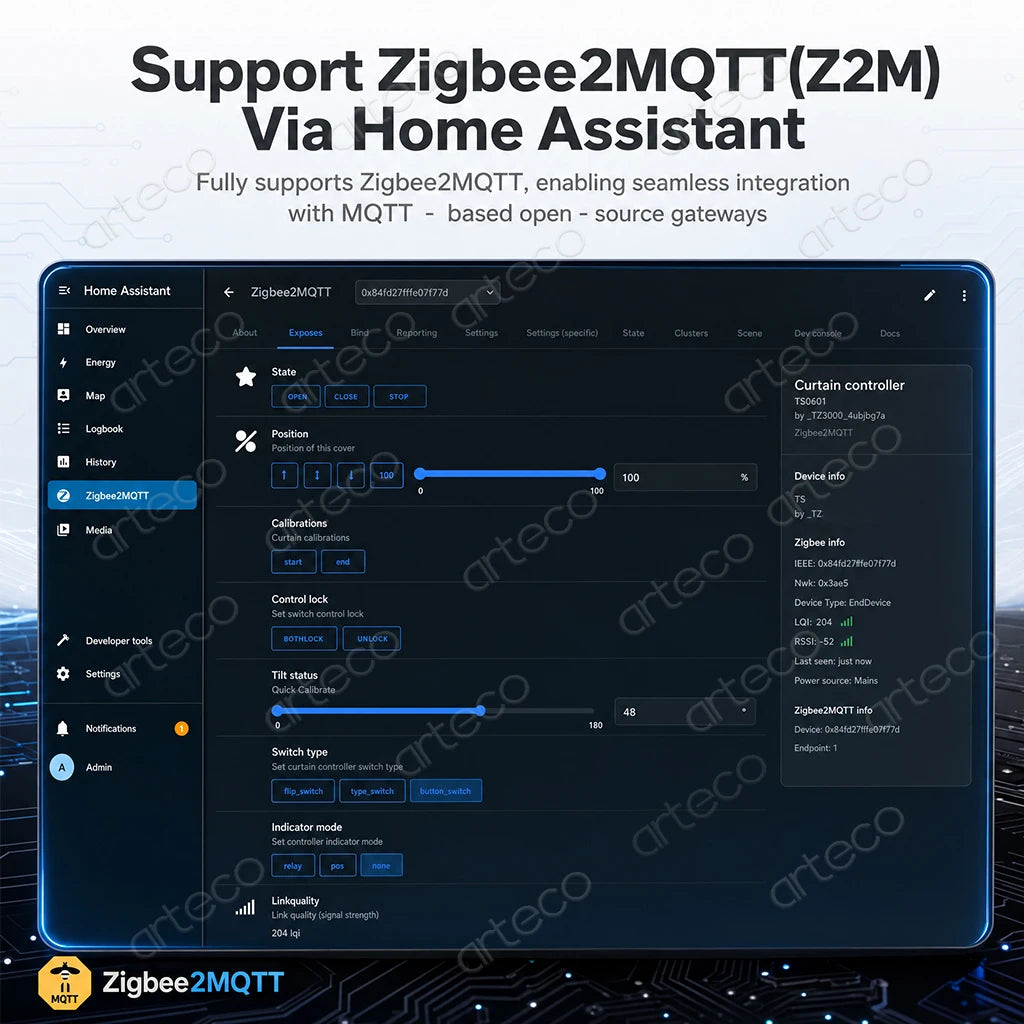

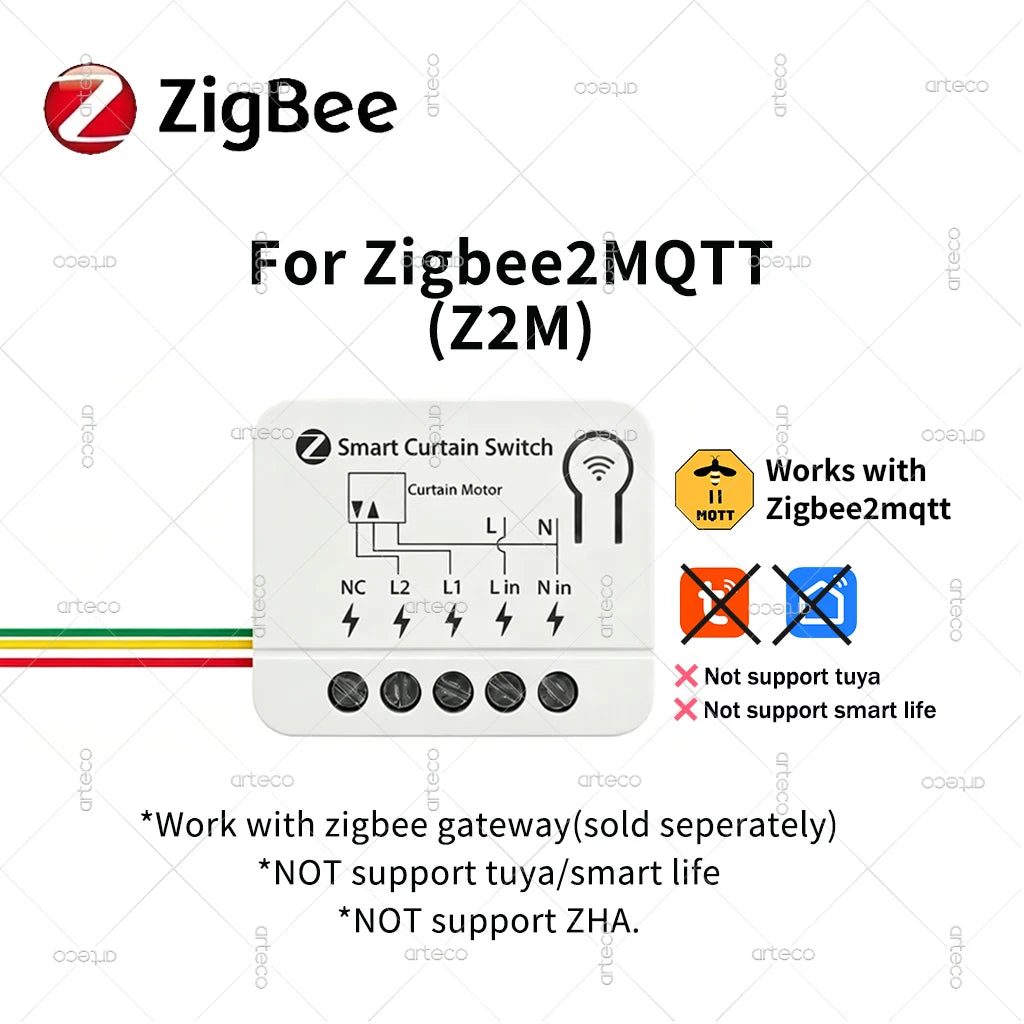

1. Zigbee 2MQTT version
--Supported devices and platforms: Zigbee 2MQTT, Home Assistant (does not support ZHA protocol)
--Devices and platforms not supported: Tuya APP, Smart Life APP, ewelink APP, ZHA protocol
--Reminder: Please confirm that your own gateway is compatible with the Zigbee 2MQTT protocol before purchasing.
2.Tuya Zigbee version
--Supported devices and platforms: Tuya Zigbee Gateway, Smart Life APP, Tuya APP, Zigbee 2MQTT Gateway
--Devices and platforms not supported: Home Assistant ZHA protocol, ewelink APP
--Reminder: Only compatible with dedicated Zigbee gateways for Tuya and gateways compatible with Zigbee 2MQTT protocol

Item: Zigbee Curtain Switch
Input: AC 110~240V 50/60Hz
Maximum current: 5A /Gang 240V AC
Rated Power: 1000W/Gang
Size: 39*31*18.5mm(±2%)
Physical Two-way Control: Support
Wireless Protocol: Zigbee 3.0(need Zigbee gateway)
Operation Humidity: 0~99%RH
Operation Temperature: -10~55℃
App:

Tuya Smart/Smart Life(cannot work via wifi directly);

Z2M(zigbee2mqtt-home assistant) ,not support zigbee home automation(ZHA)

Voice Control: Compatible with Alexa Google Home

Functions and Features:

1. APP remote control
Support remote opening and closing of curtains anytime and anywhere, real-time monitoring of curtain operation status, and easy management of multiple curtain devices within the same app.
2. Voice control
Compatible with mainstream intelligent voice assistants, supports Alexa and Google Home, and can directly control the opening and closing of curtains through voice commands.
3. Timed automation
Support custom intelligent timing scheme, can set automatic opening of curtains in the morning and automatic closing of curtains at night, supports daily cyclic operation, and is suitable for daily home routines.
4. Precise opening control
Abandoning the single fully open and fully closed mode, it supports precise positioning in 0% -100% full range, and can achieve multiple states including fully closed, semi shaded, semi ventilated, semi open, and fully open, meeting different lighting needs.
5. Home device sharing
Support multi-user sharing of device permissions, allowing for the addition of multiple family members for joint management, and the ability to independently set different user operation permissions.
6. Scene grouping linkage
Support multi curtain grouping control, which can unify the management of curtain equipment in multiple areas such as living rooms, bedrooms, and study rooms, achieve one click multi device linkage, and create an intelligent scene for the whole house.
7. Dual mode control
Retaining the traditional wall switch control function, paired with a mobile APP remote control, the local and remote modes can be freely switched, making it flexible and convenient to use.
8. Mini body easy to install

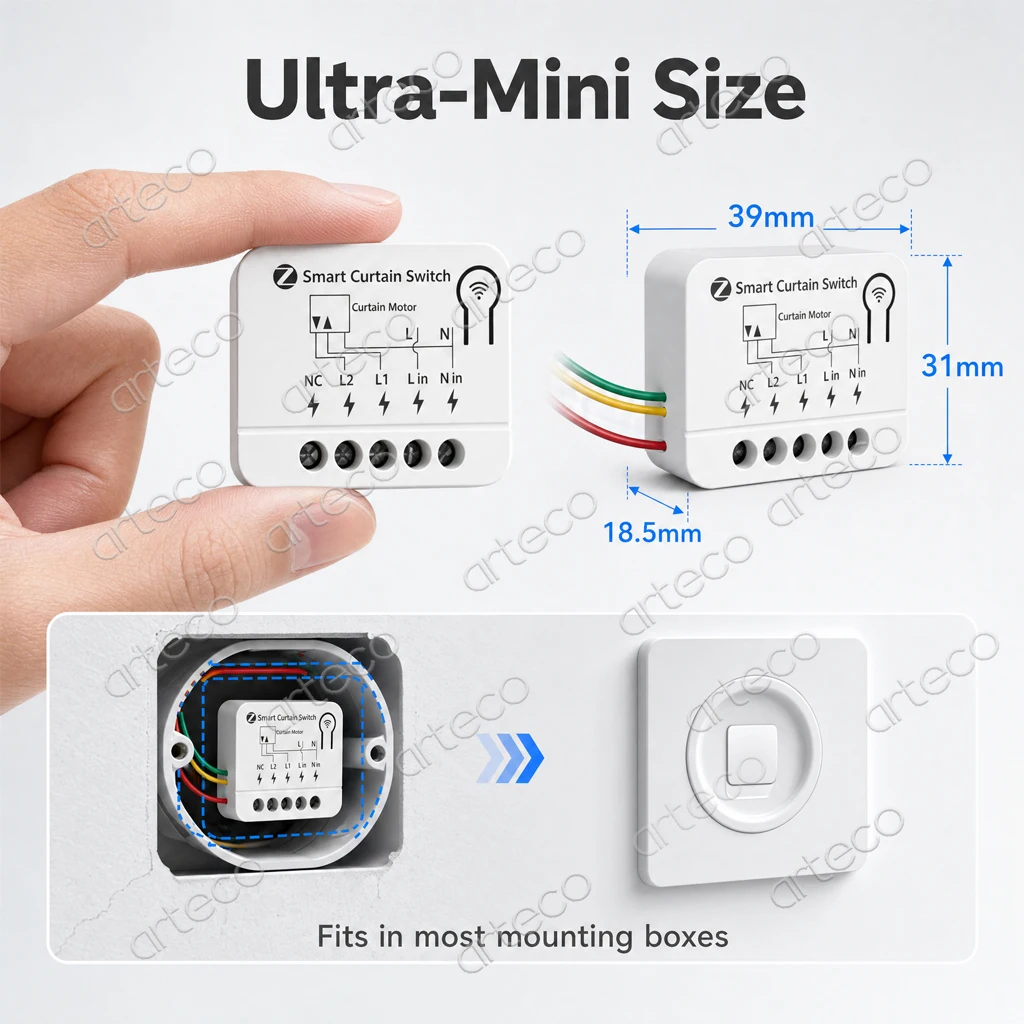

The device size is 39 × 31 × 18.5mm, with a small and lightweight volume, and can be hidden for installation, suitable for the vast majority of standard wall mounted cassette boxes on the market.
Safety and stability
Equipped with a stable Zigbee 3.0 communication system, the device has low power consumption and adopts an ABS flame-retardant shell. The material is safe and durable, and the operation is stable without lagging, making long-term use more reassuring.

Ordering Instructions
This product is a Zigbee smart module, not a WiFi device, and cannot be used separately from the gateway. Choose the corresponding version based on your own smart home ecosystem: Smart Life and Graffiti APP users choose the Graffiti Zigbee version, while Home Assistant and Zigbee 2MQTT users choose the Zigbee 2MQTT version.
Product Advantages
The device connection is stable and not disconnected, supporting multiple functions such as remote control, voice control, timed automation, precise opening adjustment, dual-mode control, multi person sharing, and group linkage. The body is compact and easy to install, with dual versions compatible with different smart home systems. It can quickly upgrade ordinary traditional curtains to smart curtains, easily achieving a smart home experience for the whole house.
