Tuya Zigbee Wifi Mmwave Human Presence Motion Sensor 5.8G 24G Radar Luminance Breath Distance Detection Sensor Home Automation

The human presence sensor adopts the principle of radar microwave, and has the functions of human presence, human stillness, human micro-motion and human motion detection. It can detect the tiniest movement, even breathing and heatbeat.

What is difference between 5.8G and 24G?
Compared to 5.8G radar, 24G radar has a shorter detection distance (which basically meets the distance requirements of daily household use). However, 24G radar has higher range detection accuracy (± 10cm); The delay time is relatively accurate; Higher recognition accuracy; Higher unmanned preprocessing speed; And the unique FMCW variable frequency modulation wave fast algorithm.

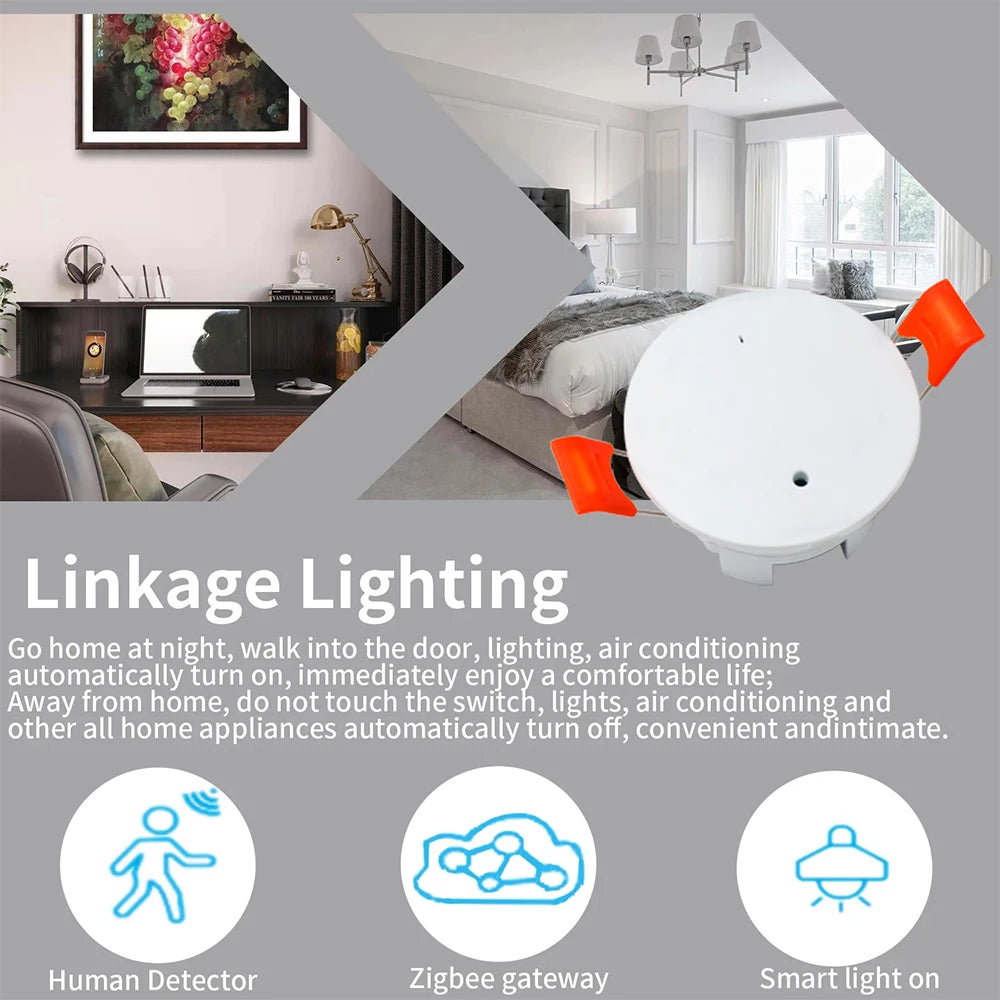

【Intelligent linkage】It can create intelligent scenes together with Tuya switches, lamps, curtains and other intelligent products to achieve energy saving, environmental protection, security alarm and other functions.
With other intelligent devices, it can realize rich automation and scene control. Make intelligent hardware respond faster and control moresmoothly.

【Home Security】With human presence detection,you can used to detect intruders, whether it's in your personal home, an office or retail setting or even an industrial environment.

【Energy Conservation】It can not only be used to detect moving, but also non-moving. Like the kitchen light turns on once you enter the room and off once you leave.

【APP Remote Control】It detect micro/macro motions enables you to detect human presence within a configured distance, and get alerts in real time via app.

【Widely Used】The Micro motion sensor can be widely used in lighing, security, home appliance, hotels, garages, buildings, transportation, LOT internet of things and other industries that need to detect human micro motion, motion and control detection distance.

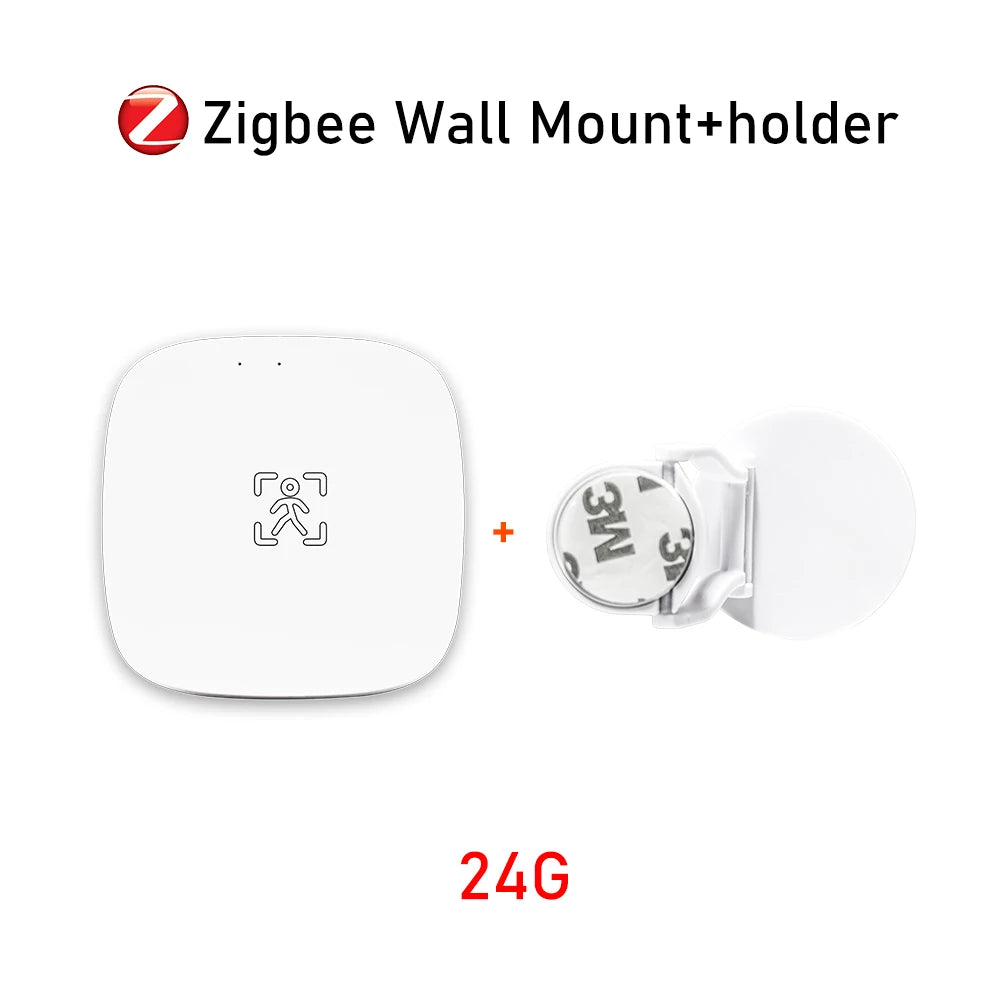

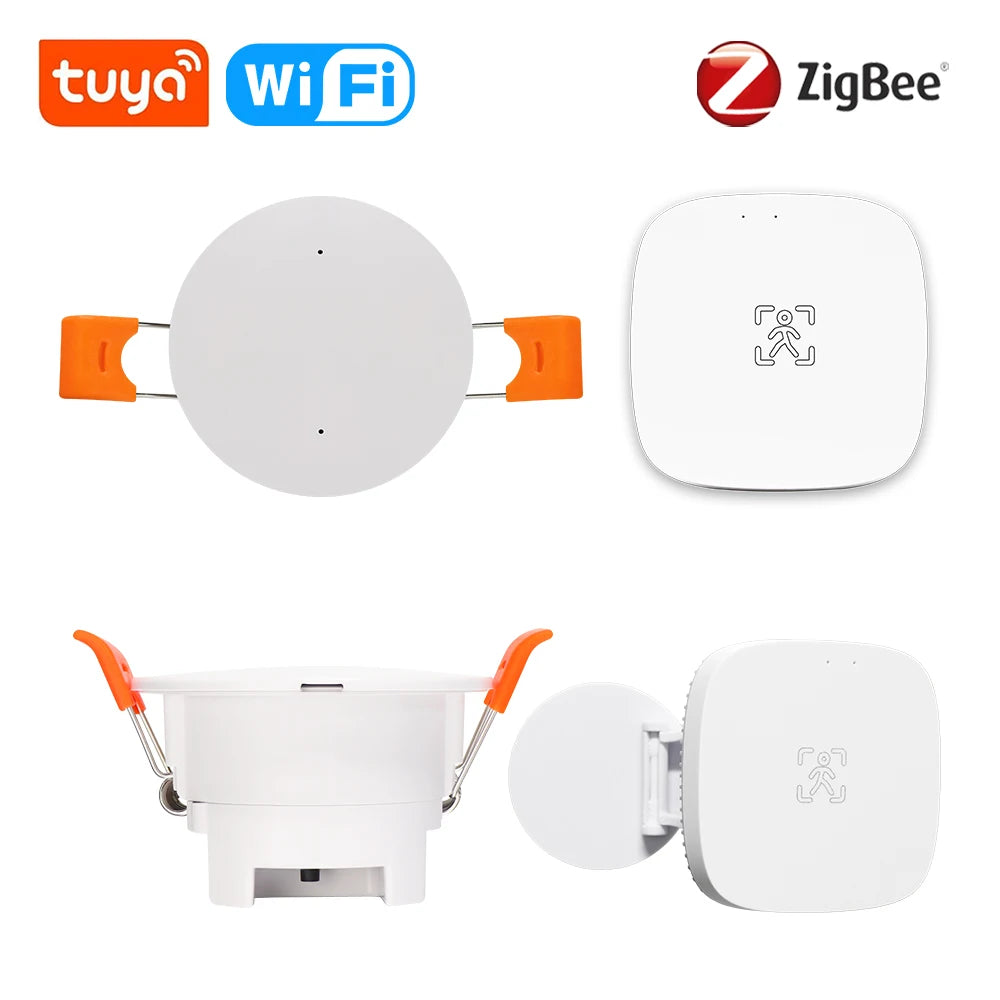

Network: ZigBee 3.0 / Wifi 2.4Ghz

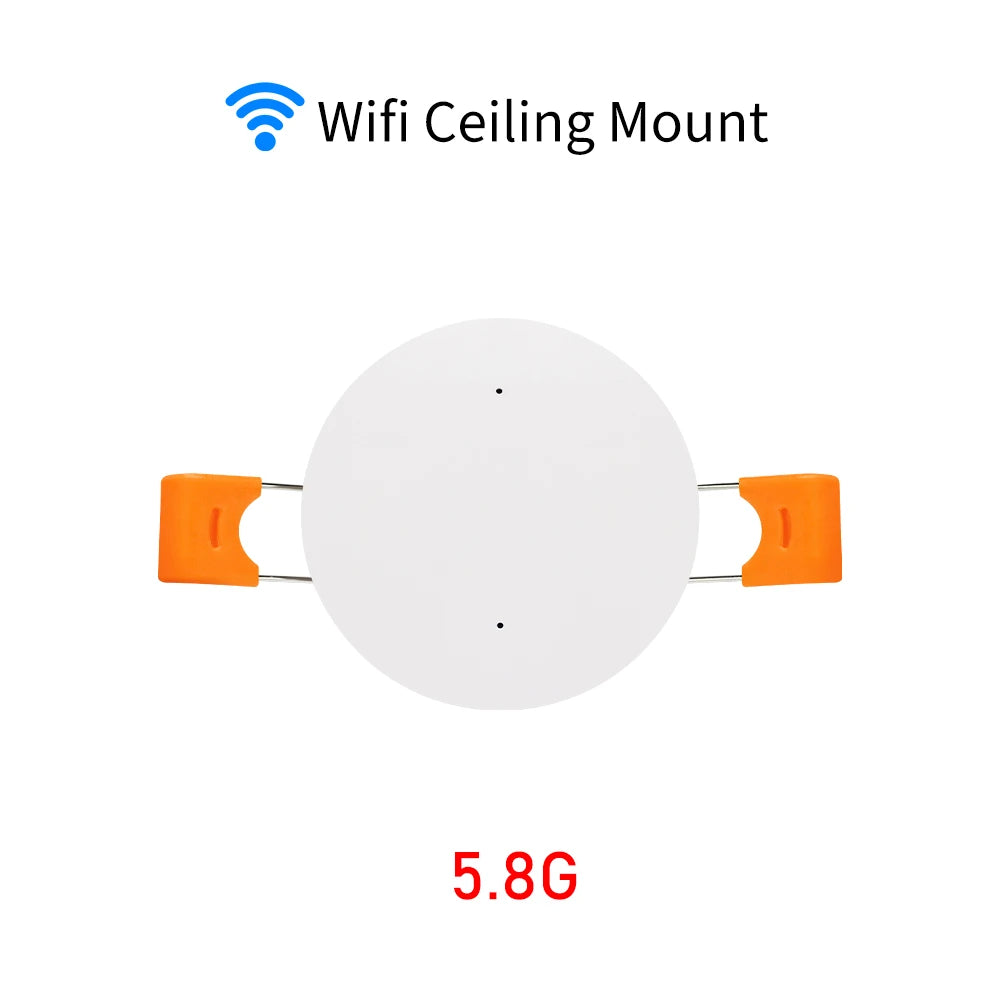

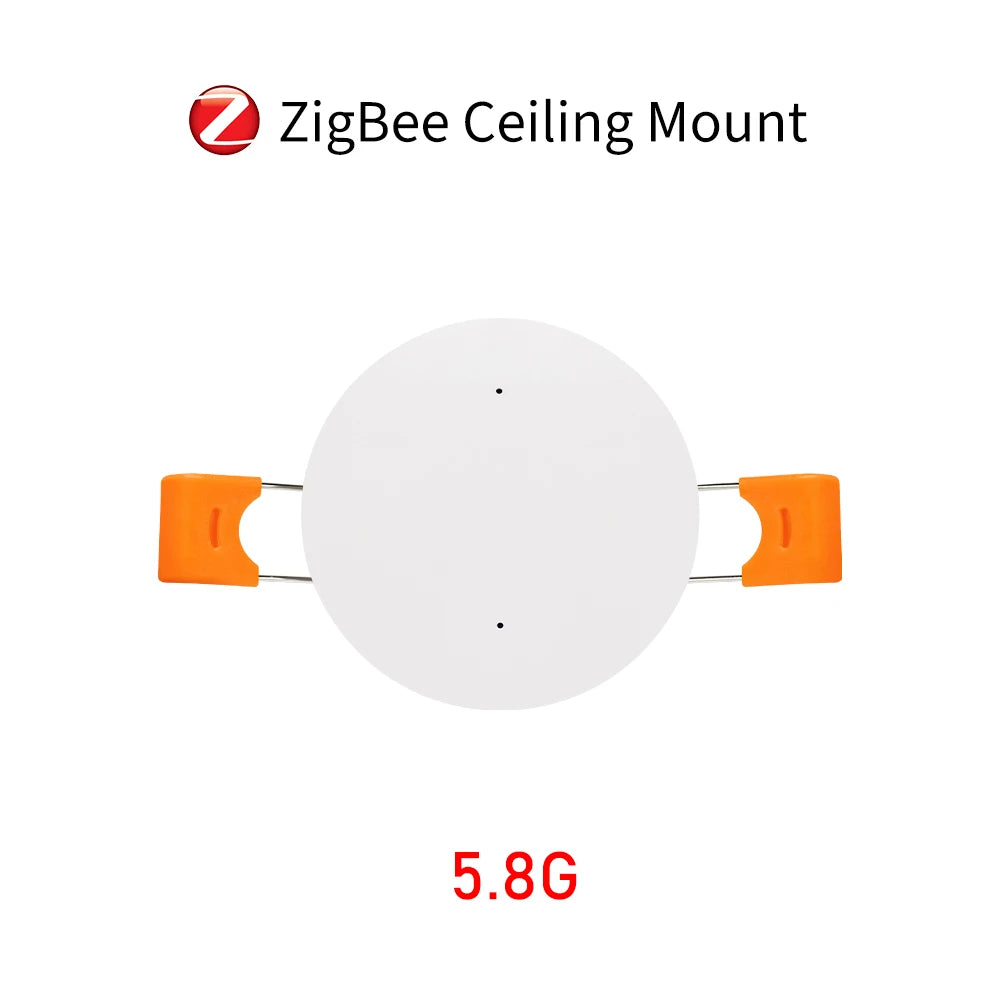

Celling mount sensor input: AC80-240V

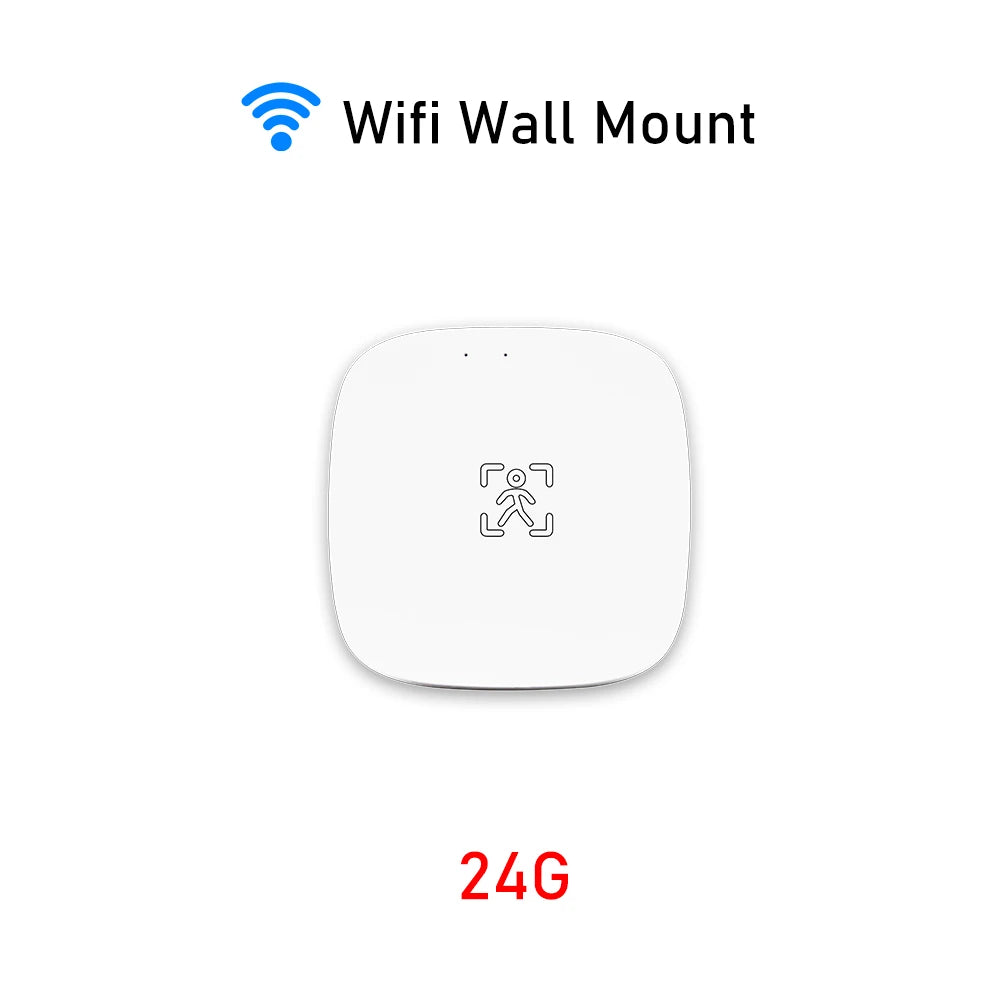

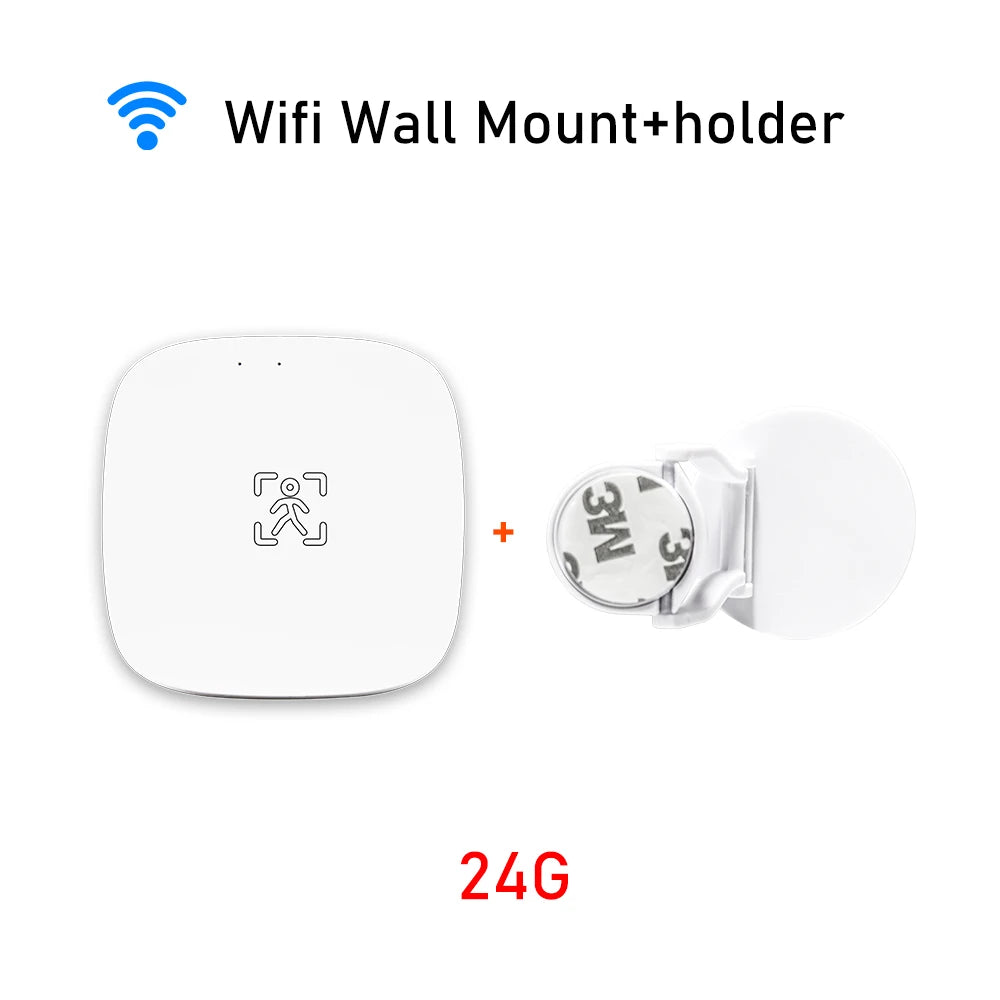

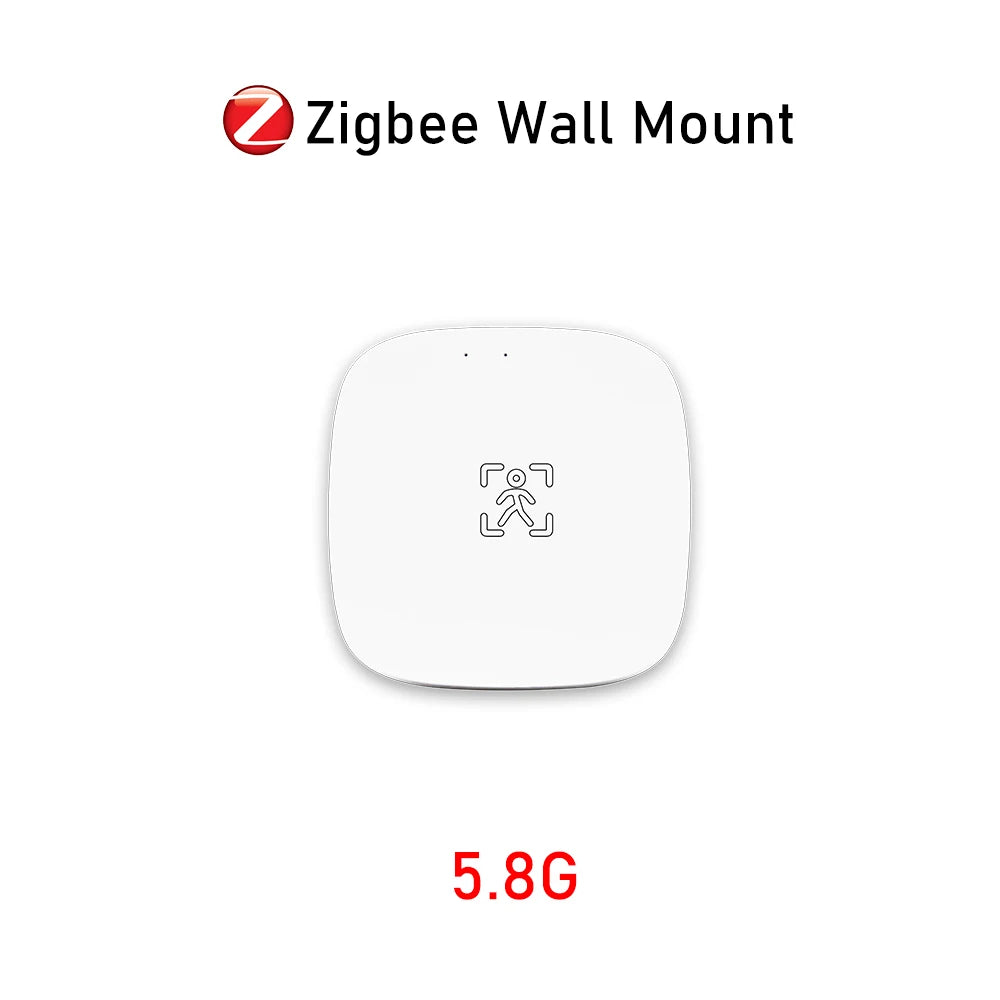

Wall mount sensor input: USB 5V
Working temperature: -20℃~+70℃
Sensitivity: 1-9(default 7)

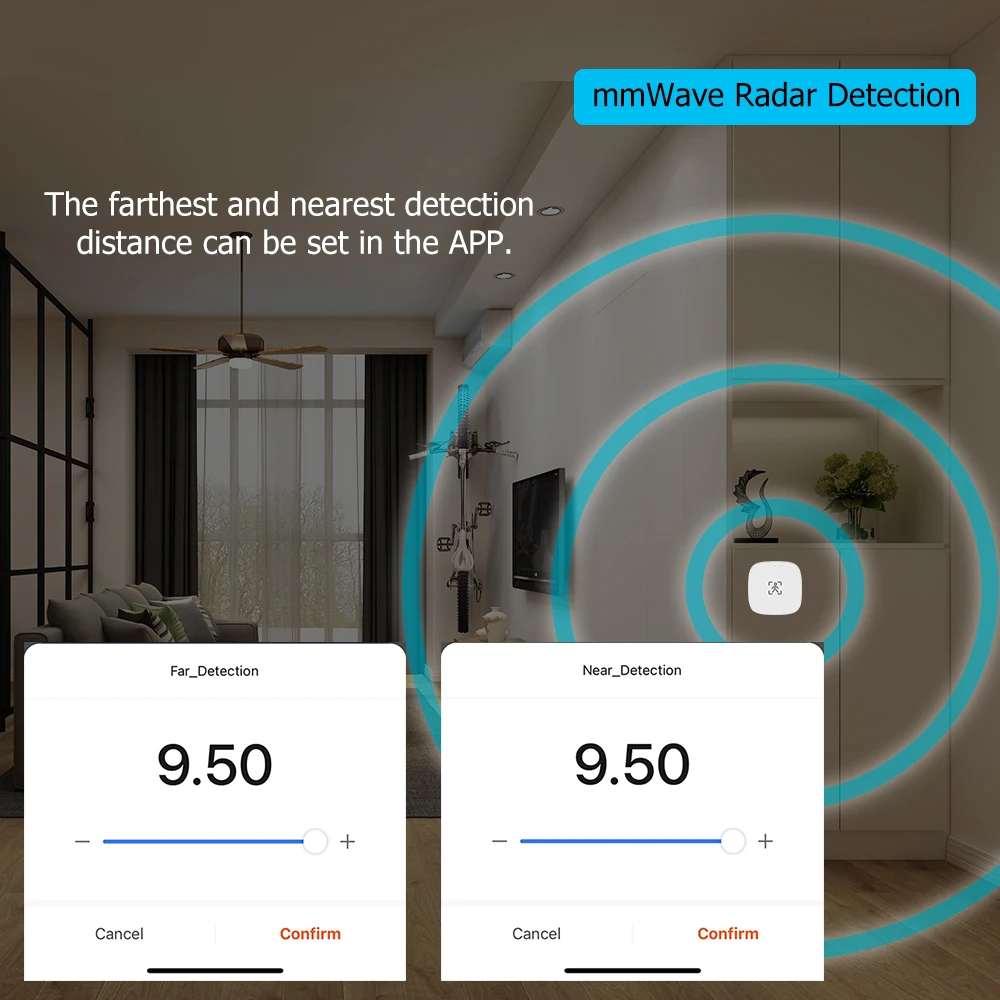

Wall mount sensor sensing distance: 0.3-9m(Default 6m)
Celling mount sensor sensing radius: 0-7m(Default 5m)
Illuminance Sensor: 0-2000 LUX
Target detection confirmation time:0-10s
Target disappearance delay time:2-1500s

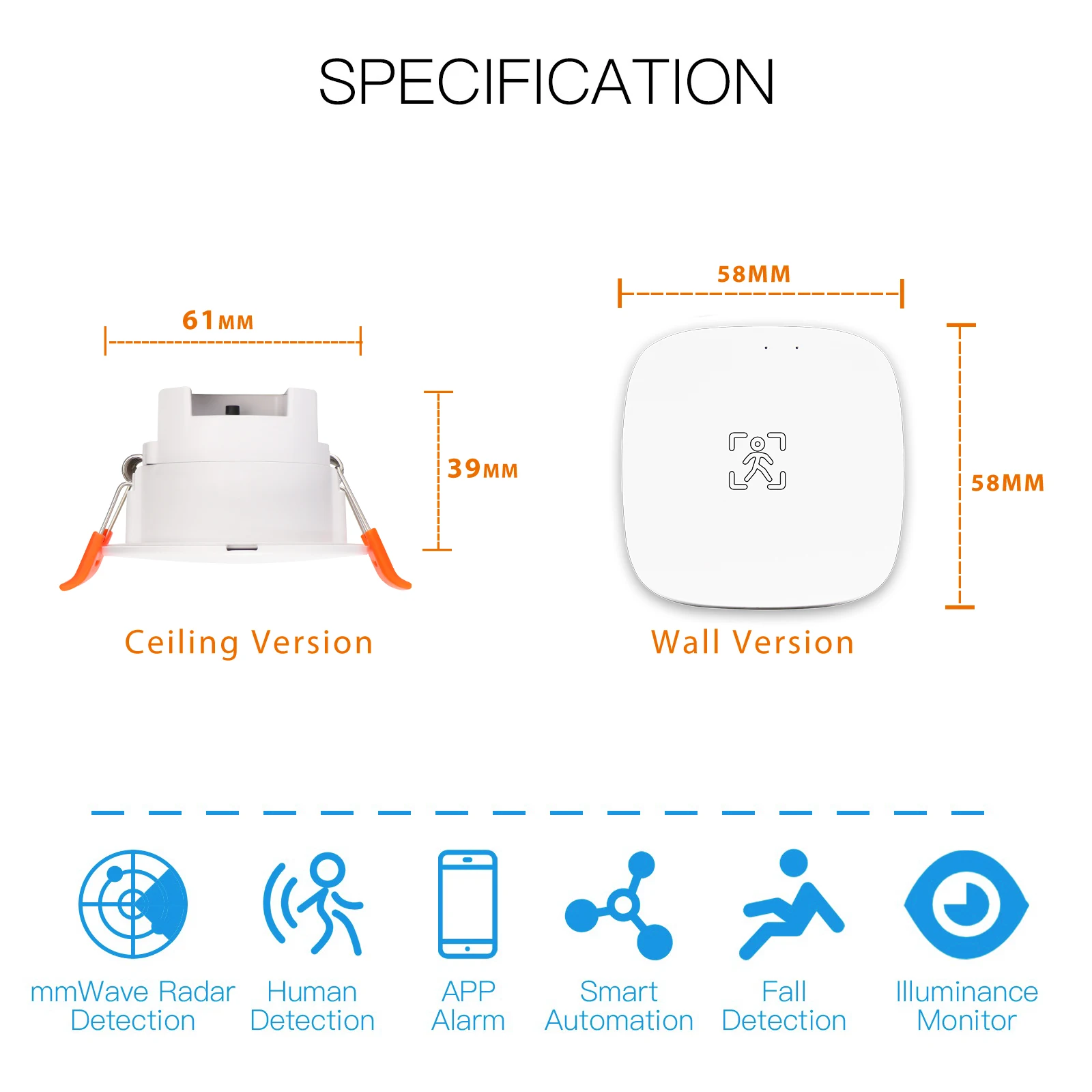

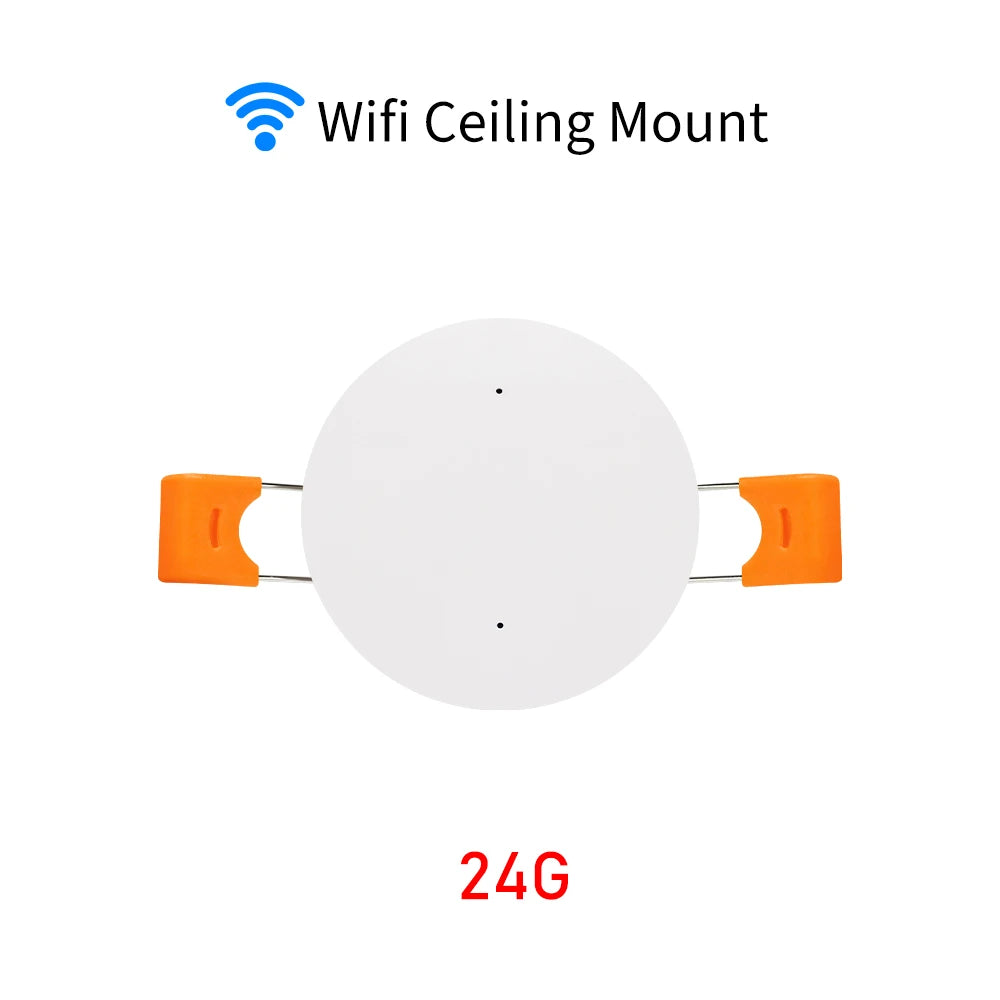

Celling Mount Size: :Φ61*H39 mm
Celling Mount Opening Size: 53-58mm

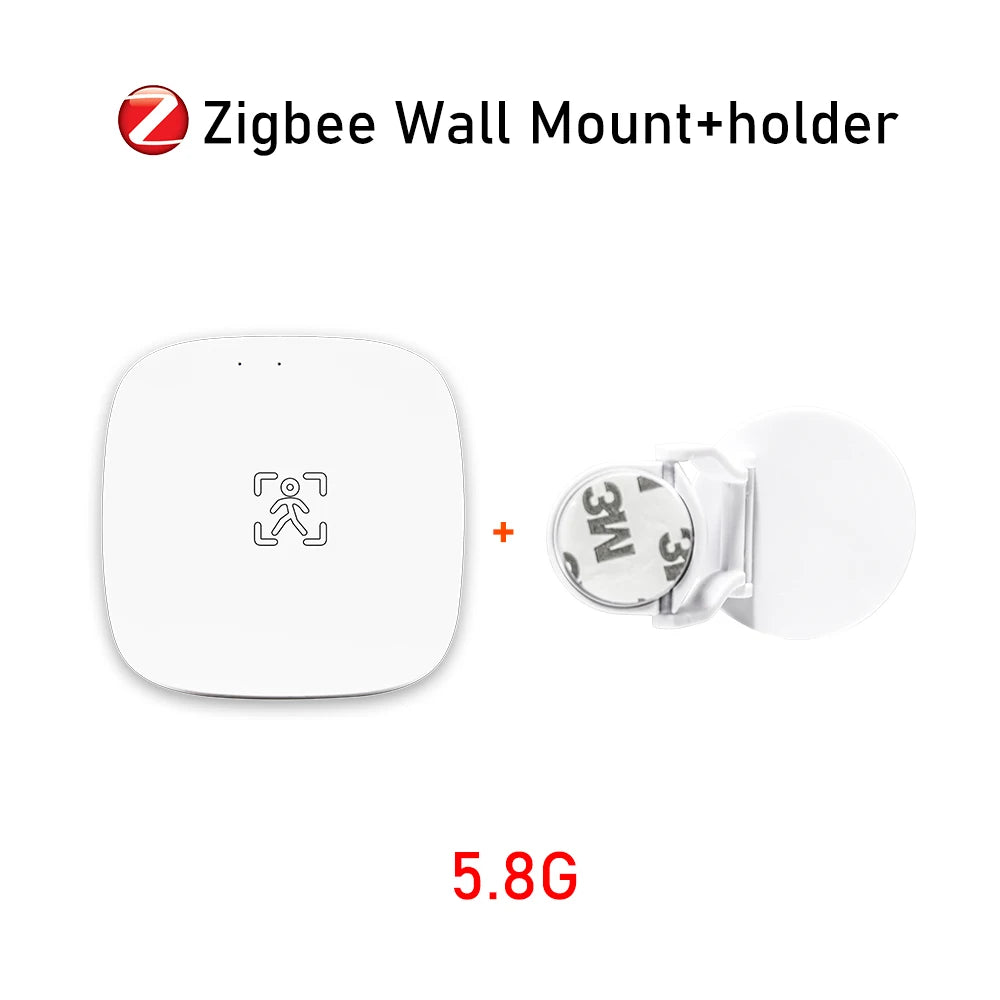

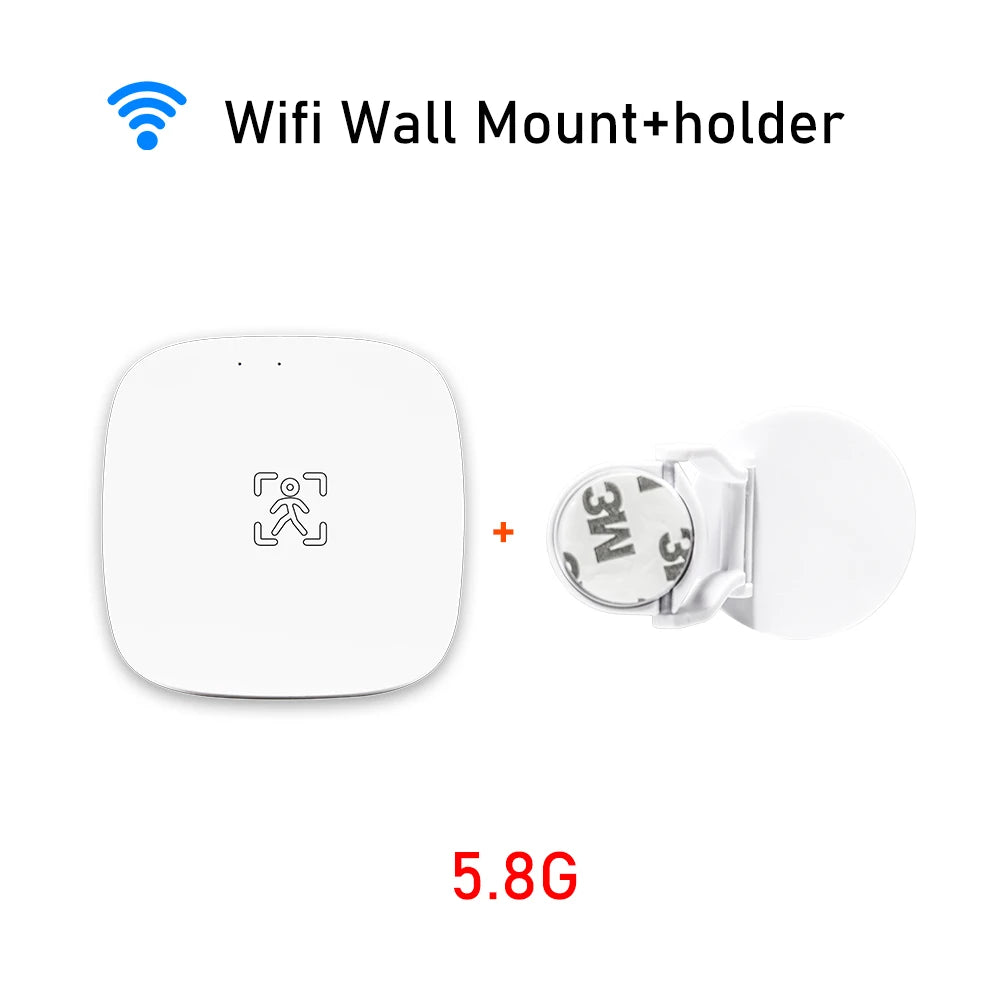

Wall Mount Size: 58mm*58mm*11mm

Q&A:

Q: Does it need hub (gateway) for smart controls in APP?

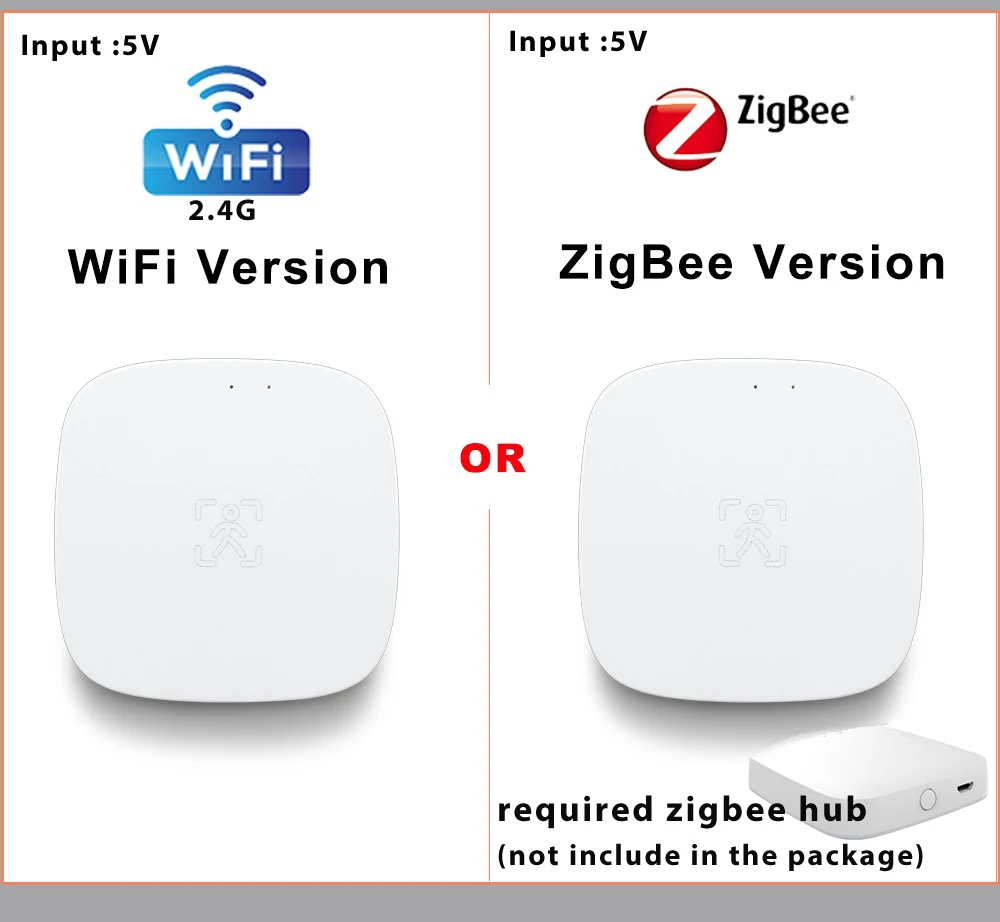

A: If you buy Wi-Fi version, just connect to the router. If you buy ZigBee verision, it is produced with ZigBee protocol which is Tuya ZigBee hub required.

Q: What is the diference between a human presence sensor and a PIR motion sensor?

A: The smart human presence sensor acts as more sensitive and with more necessary features in APP to clarify the meaning of home security in a true sense than a PIR motion sensor,even can accurately detect the static state such as personnel sleeping.

PIR infrared sensors can only detect human motion, but cannot detect when people are still, and the false alarm is serious.

Q: Can I set the detection latency to reduce false alarm rate?

A: Yes,you can set the detection latency from 0 to 10s to avoid irrelevant annoying movement.

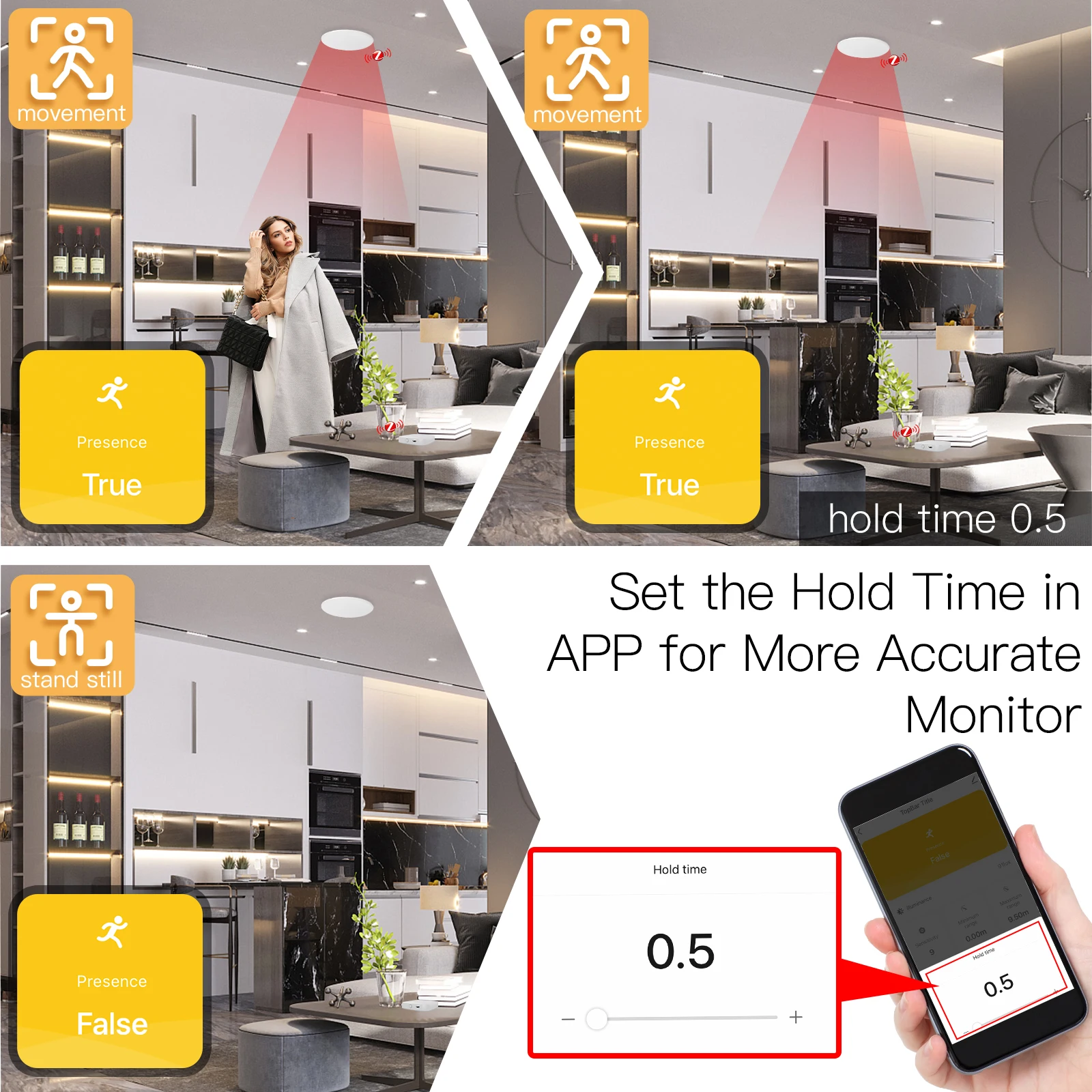

Q: Can I set the hold time to ensure its best detection function?

A: Yes, there is the hold time set available in APP for much more accurate detection.
