Tuya Zigbee Wifi Mmwave Human Presence Motion Sensor with Luminance/Distance Detection Human Body PIR Sensor Wireless Real-Time

Main Features:

Radar transmitting frequency: 5.8GHz

1.WiFi / ZigBee Smart Human Presence Sensor

Featured as human presence,human static,human micro motion and human movement motion detection to detect the presence or absence of people in the area,even to detect the static state such as personnel sleeping accurately with mmWave Radar Detection featured.

2. Perceived Light Intensity for Smart&Scene Linkage

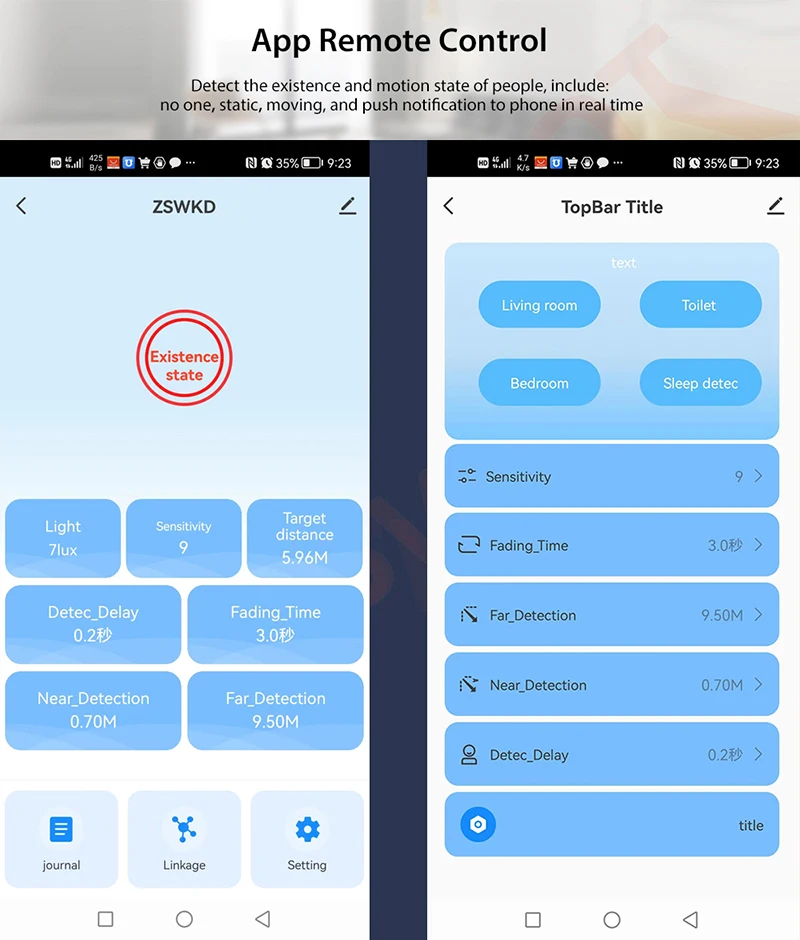

Illuminance monitor in Tuya Smart APP enables its smart feature as smart scene linkage with other smart devices,especially your house lights to ON/OFF automatically as the brightness changes;Besides,you can intelligently linkage the sensor to other smart home devices for home automation.

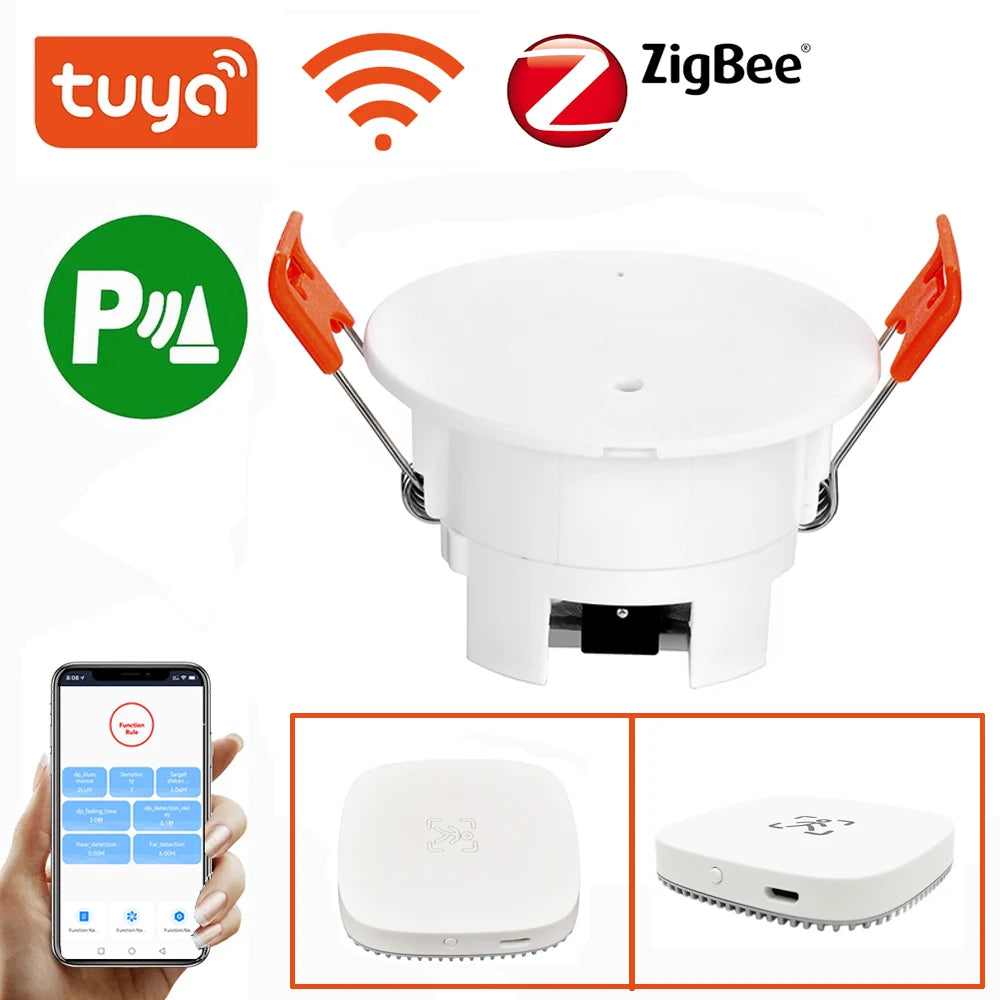

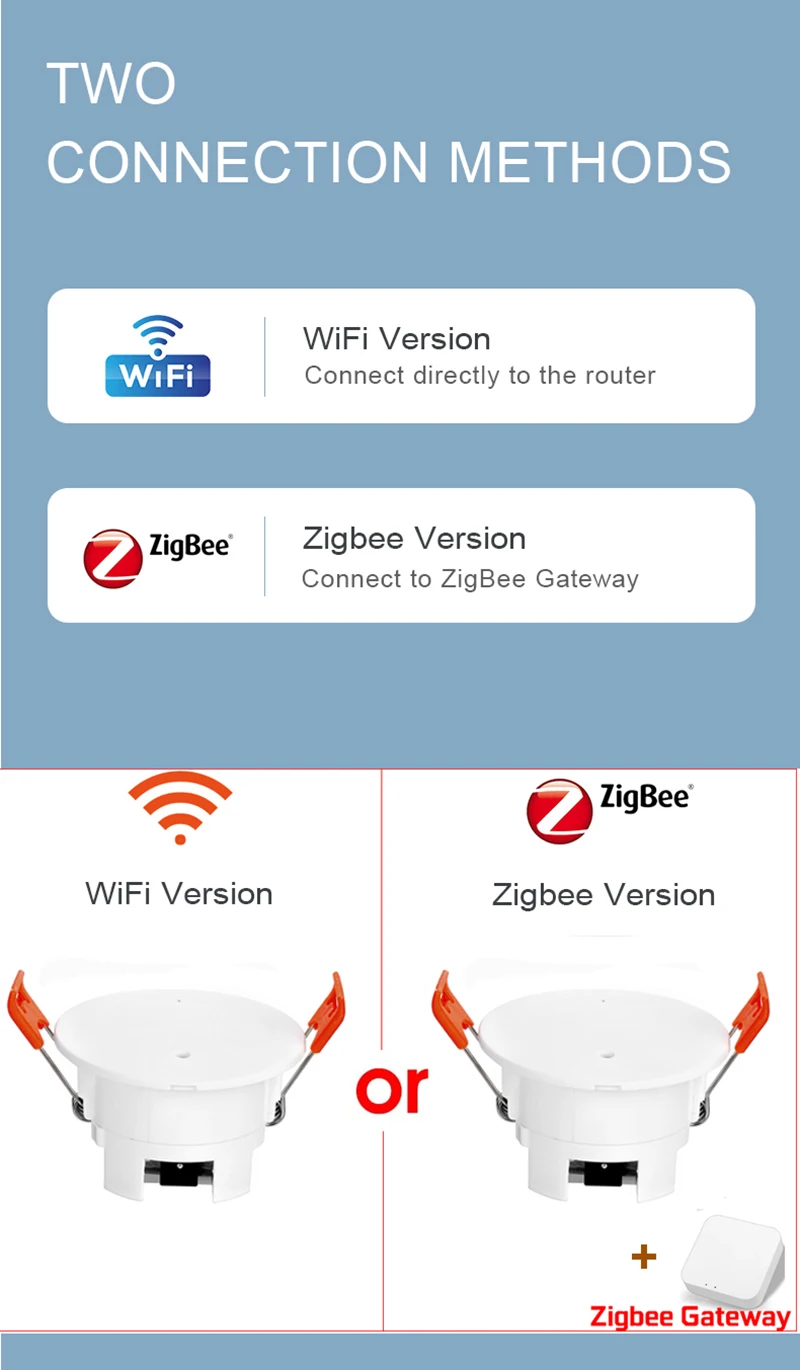

3.Two Models Are Available

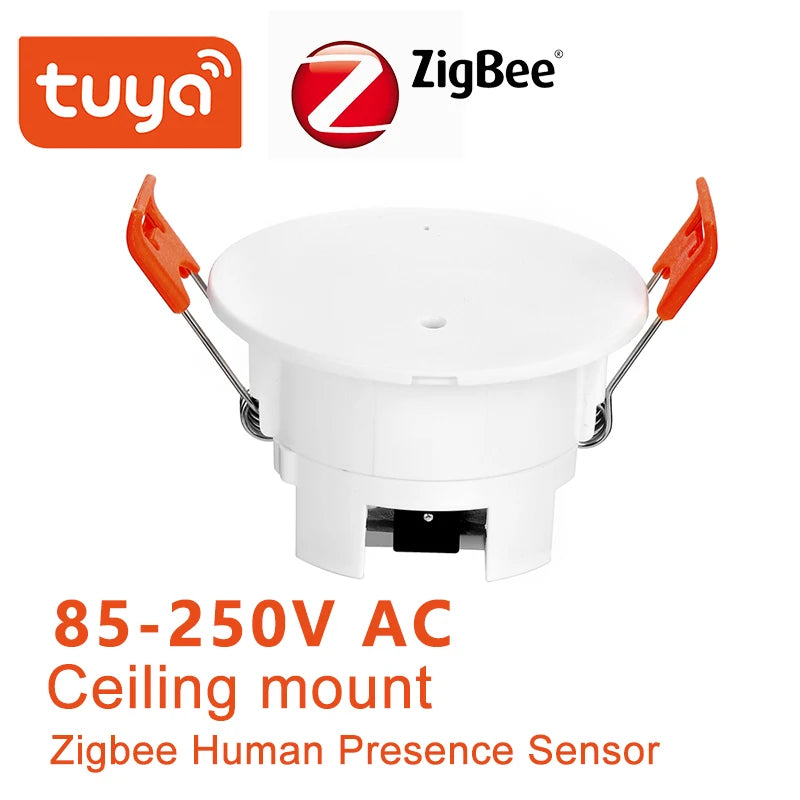

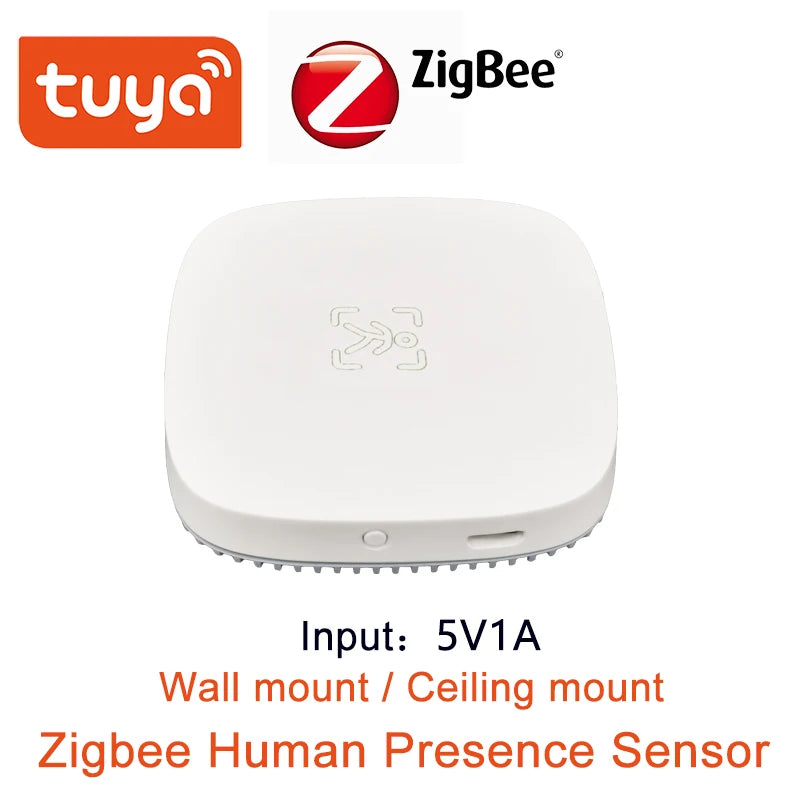

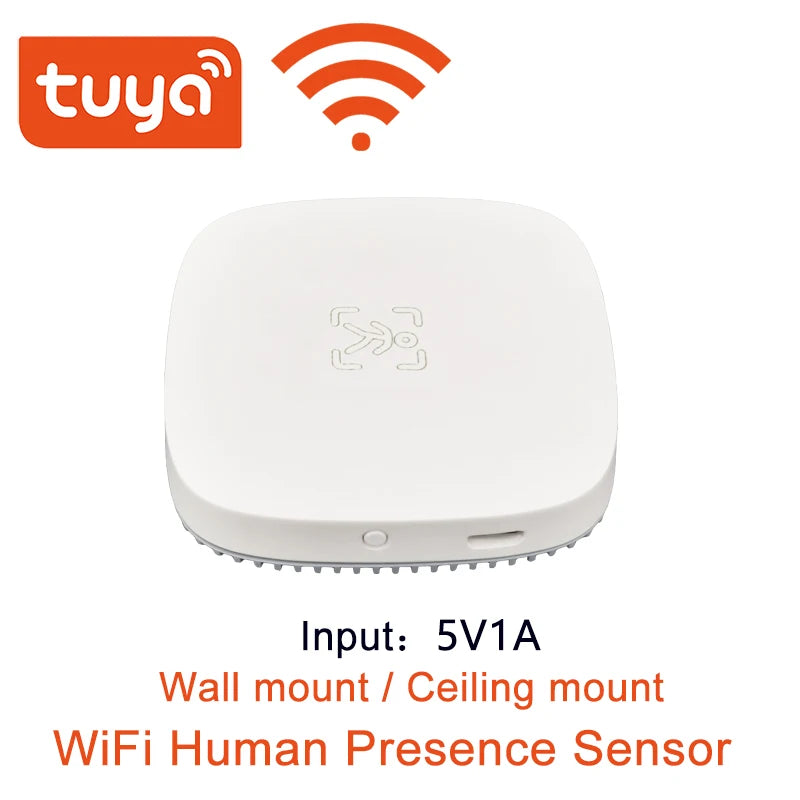

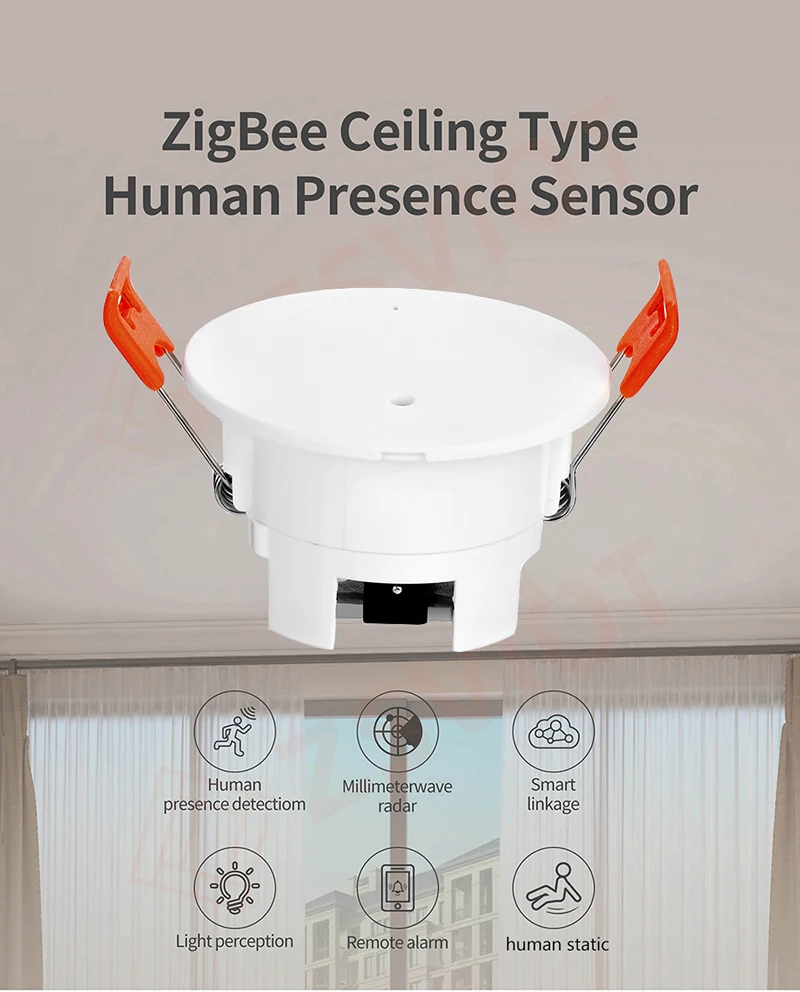

The ceiling mount can be installed like a downlight, which can be powered directly by AC; the wall mount can be attached to the wall or wherever you need it. It's as light as a wireless hub, and it's powered by USB 5V.

4. Advanced New Design with Multiple Settings

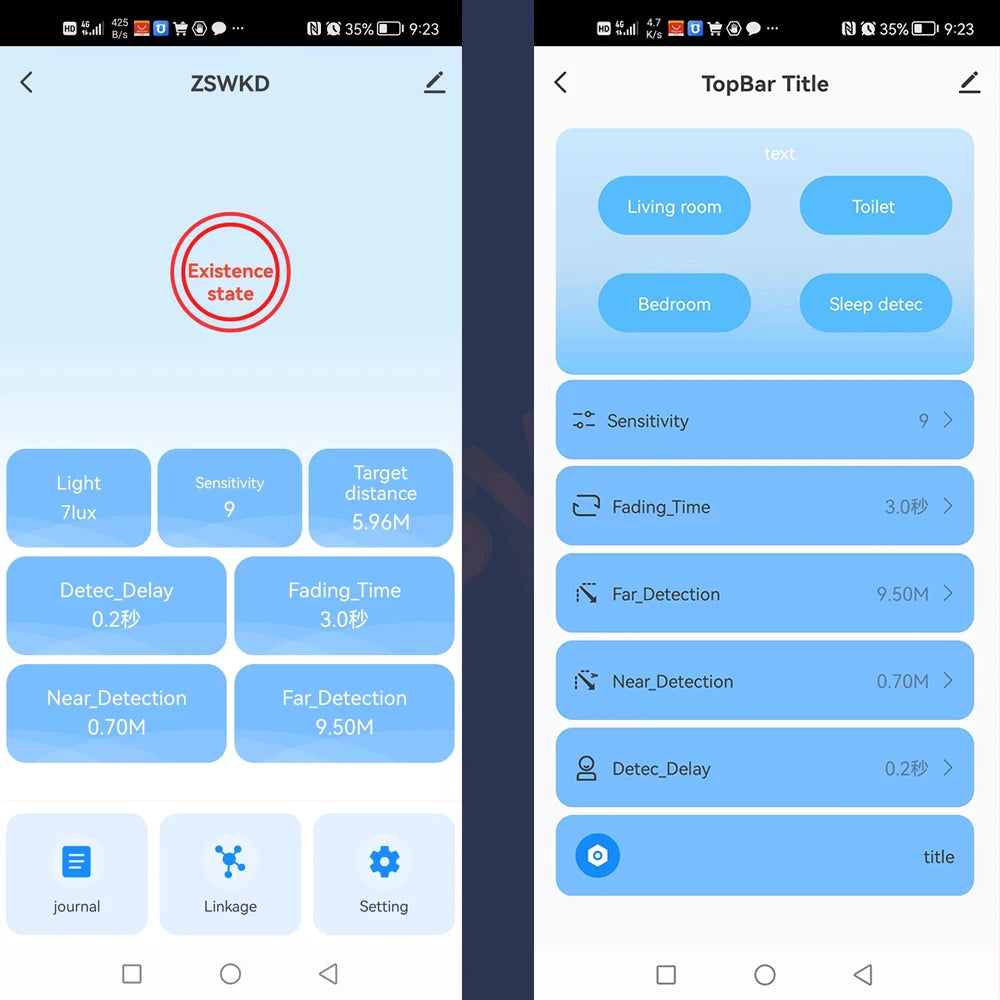

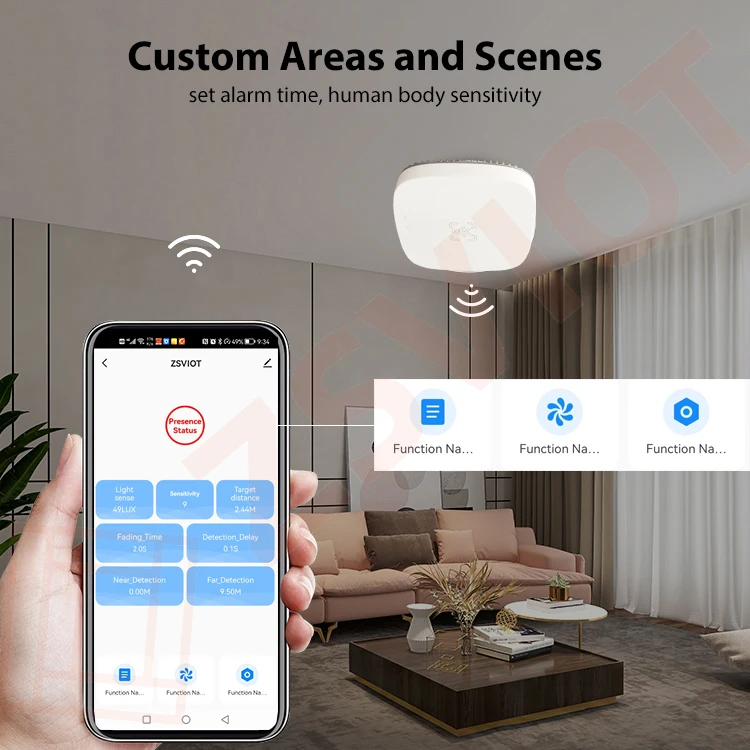

Set the sensitivity from 1-9 to your own need,together with minimum detect range as 0.00m and maximum as 9.5m for flexible detection demand.Meanwhile,it is designed with hold time set as 0-1500s and detection latency set as 0-10s to avoid irrelevant annoying movement and reduce false alarm rate.

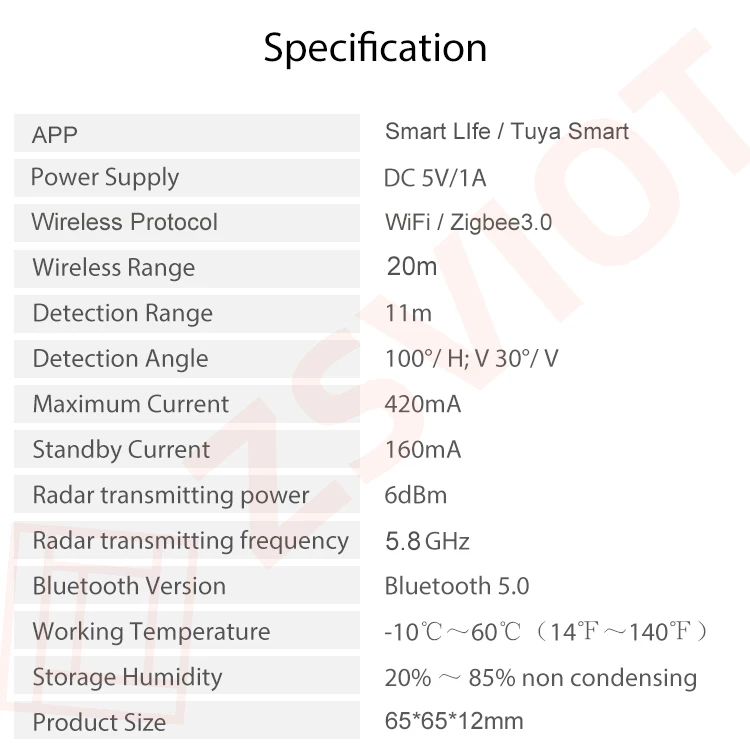

Specifications:

Network: ZigBee3.0 / Wifi.

Bluetooth version: Bluetooth 5.0

Radar transmitting frequency: 5.8GHz

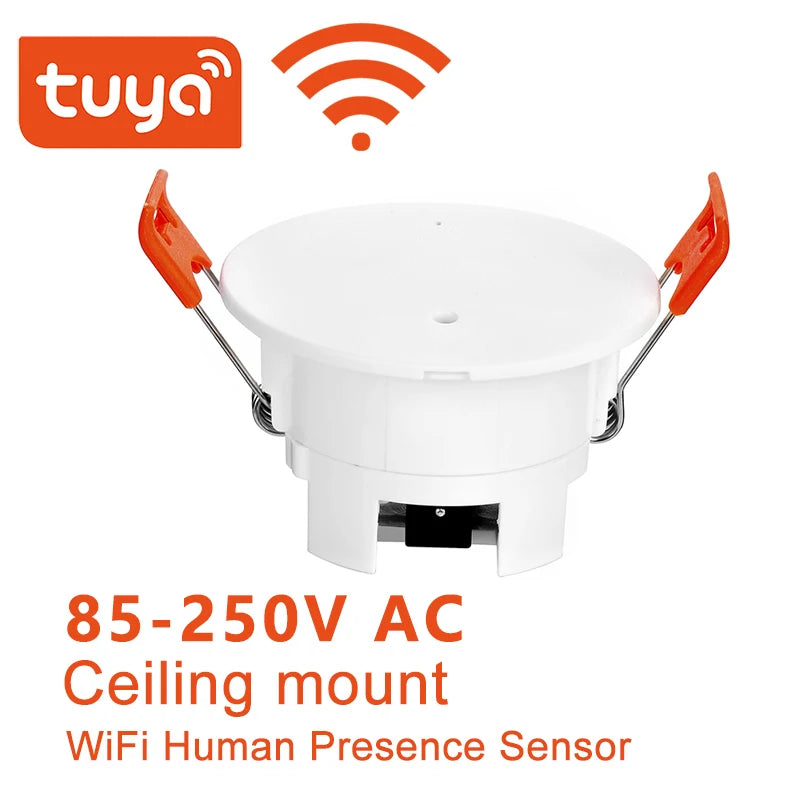

Celling mount sensor input: 80-240VAC.

Wall mount sensor input: Micro USB 5V 1A

Maximum detection distance: 11m

Sensitivity: 1-9(default 7)

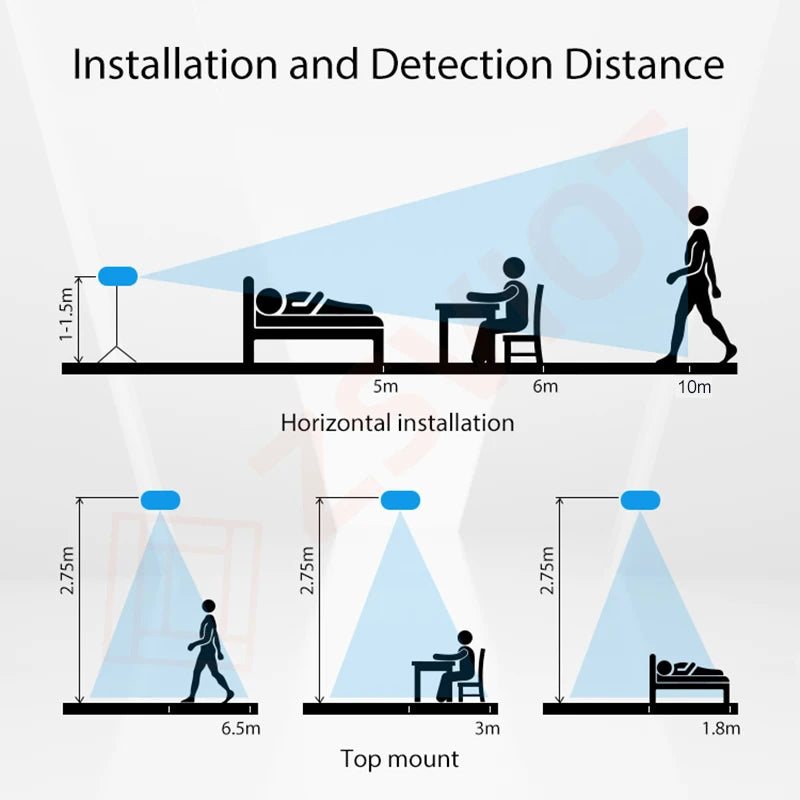

Wall mount sensor sensing distance: 0.3-9m(Default 6m).

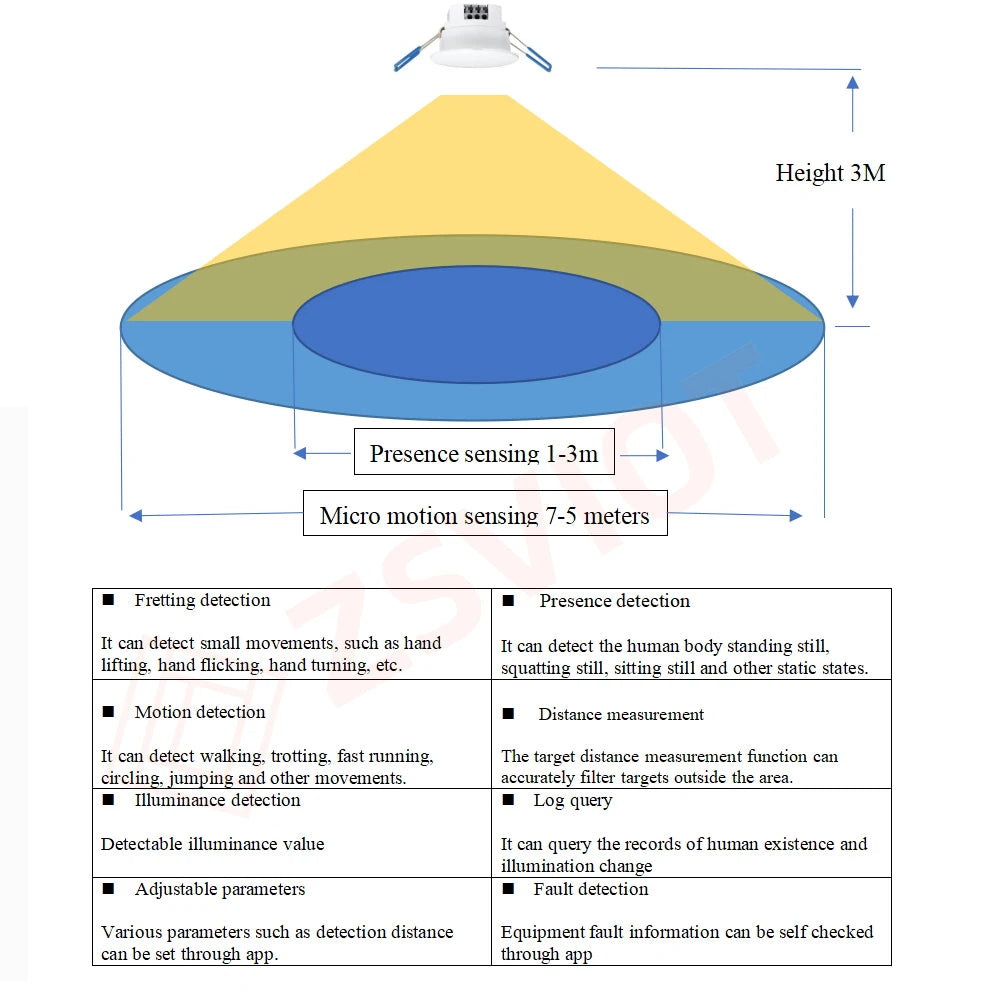

Celling mount sensor sensing radius: 0-7m(Default 5m).

Directly opposite the vertical plane 30°

Detection angle: Directly opposite the horizontal plane 100°

Illuminance Sensor: 0-2000 LUX.

Target detection confirmation time:0-10s

Target disappearance delay time:2-1500s.

Celling Mount Size: :Φ61*H39 mm

Celling Mount Opening Size: 53-58mm

Wall Mount Size: Size:65mm x 65mm x 12mm

Package list:

Human presence sensor*1

User manual*1

Plug（Celling Mount）

USB Cable*1（Wall Mount)
