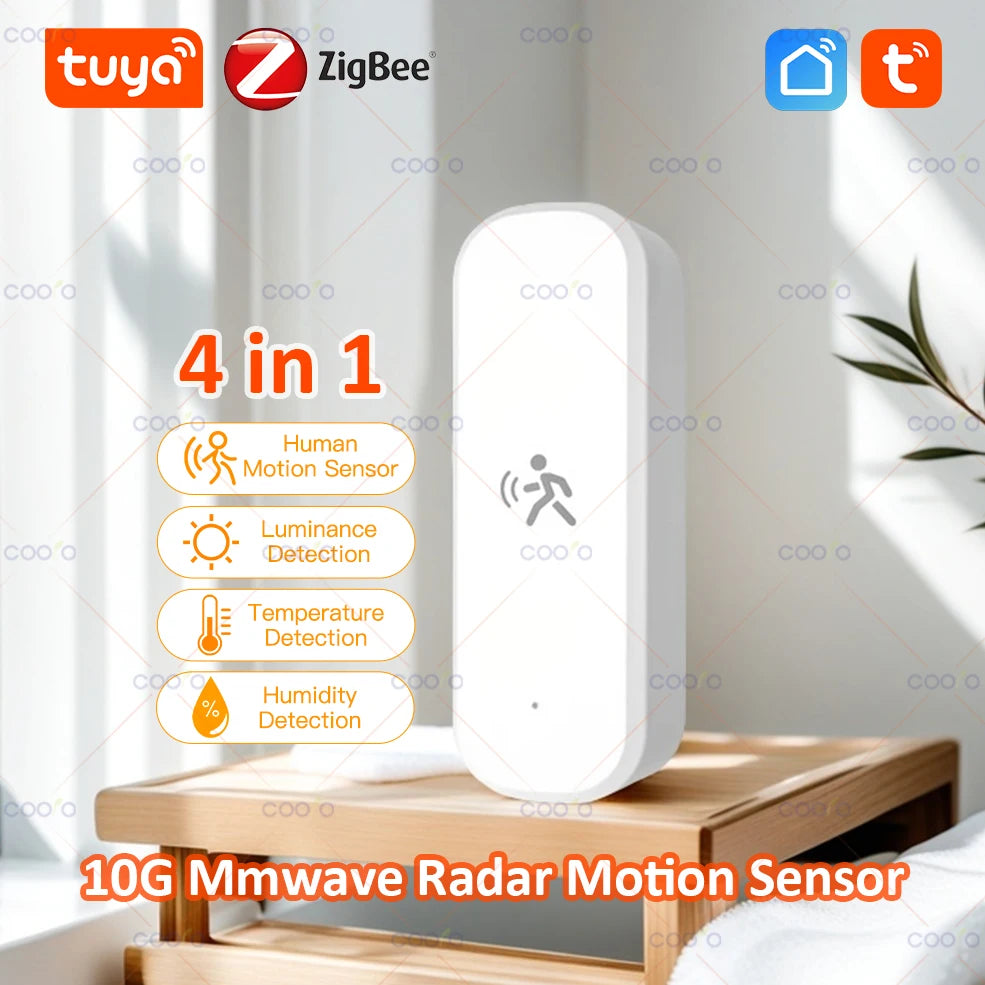

Zigbee 10G Mmwave Radar Motion Sensor Human Detector with Illuminance Temperature Humidity Sensor Support Tuya Hub Zigbee2Mqtt

Zigbee 10G MmWave Radar Motion Sensor Human Detector with Illuminance Temperature Humidity Sensor Support Tuya Hub Zigbee2MQTT

There are 2 connection protocols:

For Z2M: only support Home Assistant Zigbee2MQTT, please note Z2M not ZHA. Also cannot work with Tuya/smart life App! If use it in tuya or smart life app directly, only PIR function.

For Tuya zigbee: Both Support Tuya/smart life App and Z2M, must be use a Tuya zigbee gateway/hub, cannot work with wifi directly!

There are 5 types:

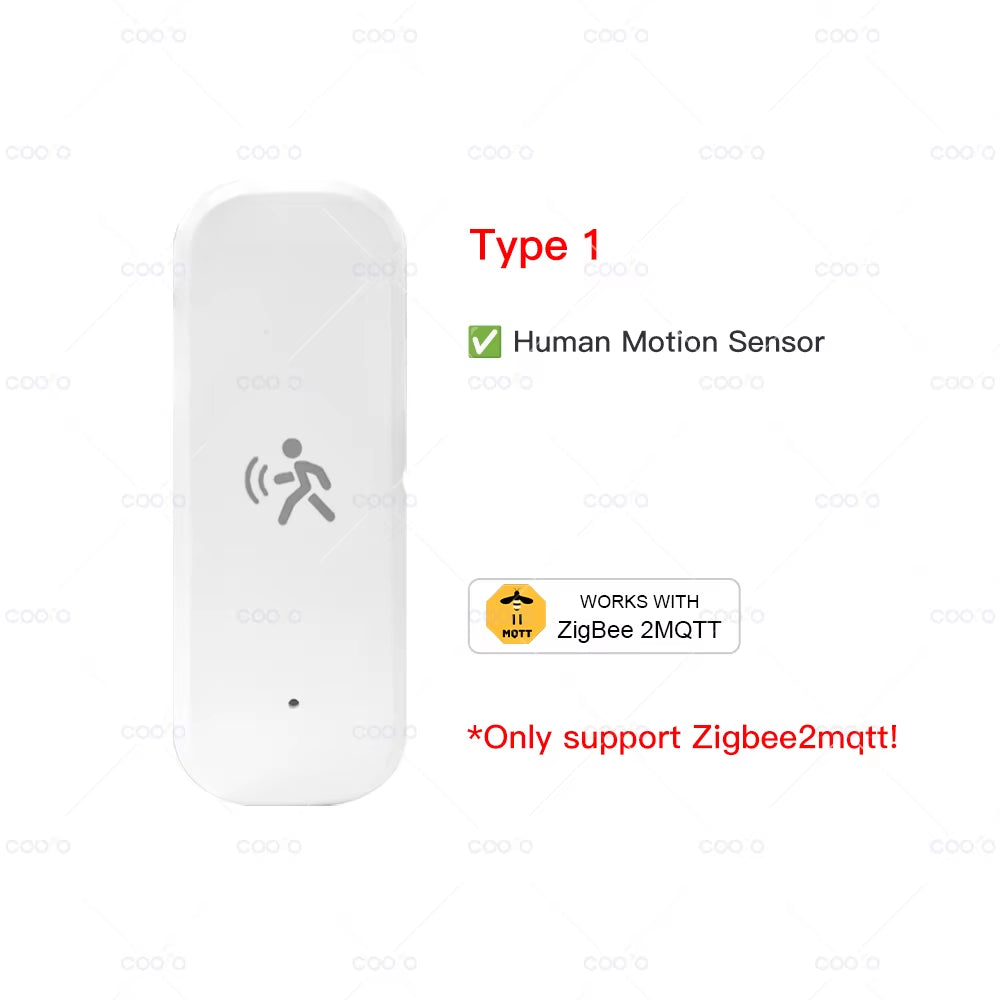

Type 1, Only support Zigbee2mqtt; Only Motion Sensor

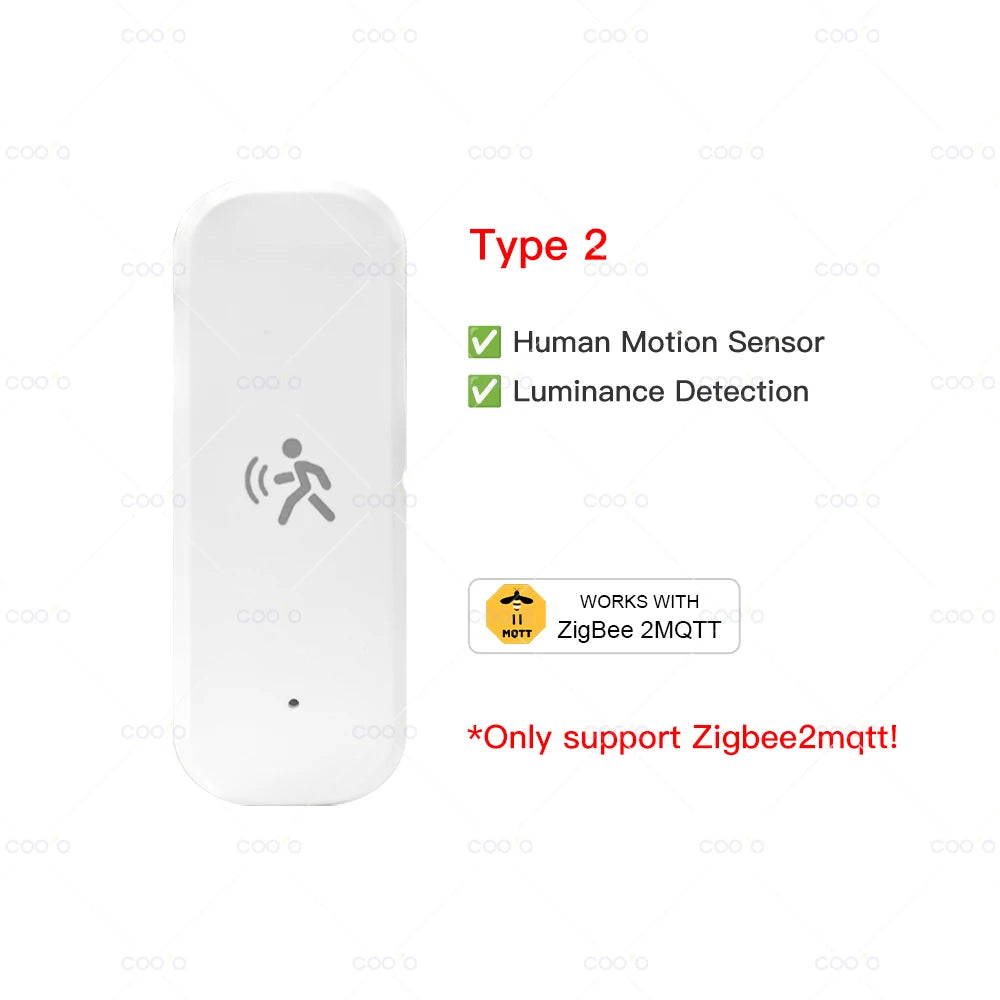

Type 2, Only support Zigbee2mqtt; Motion Sensor+Luminance Detection

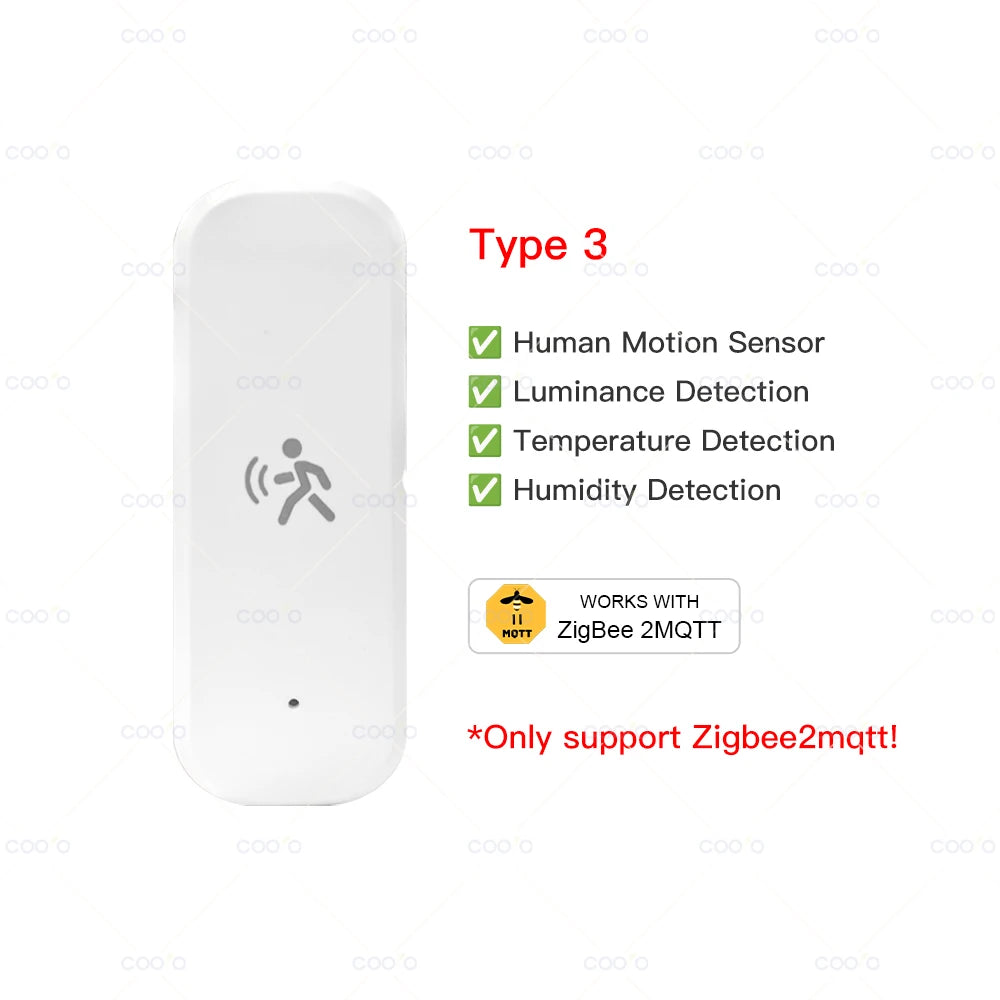

Type 3, Only support Zigbee2mqtt; Motion Sensor+Luminance+Temperature+Humidity Detection

Type 4, Support Tuya/smart life App, must be use a zigbee gateway; Motion Sensor+Luminance Detection

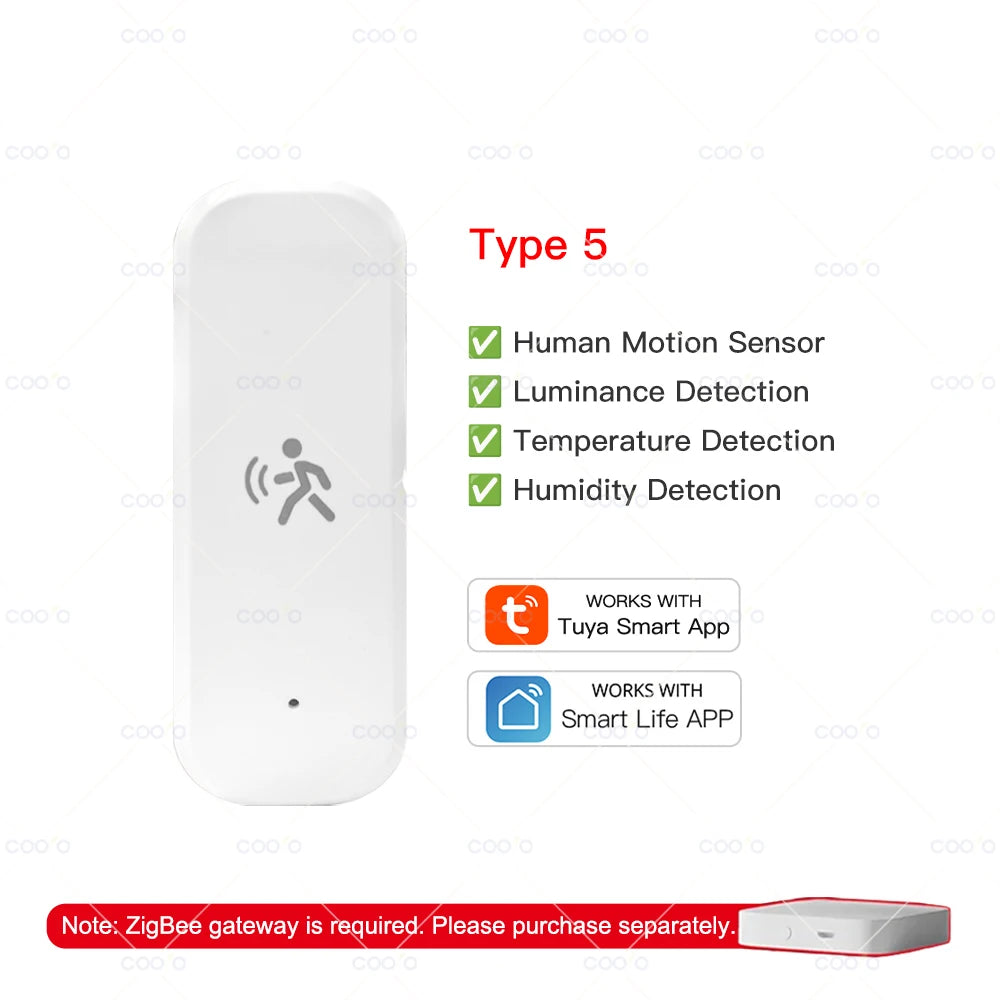

Type 5, Support Tuya/smart life App, must be use a zigbee gateway; Motion Sensor+Luminance+Temperature+Humidity Detection

Specification

Item: Smart Human Motion Sensor(10G mmWave radar motion sensor not presence sensor)

Working Voltage: DC3V

Wireless Protocol: Zigbee3.0 (need zigbee gateway)

MW Frequency: 10.525GHz

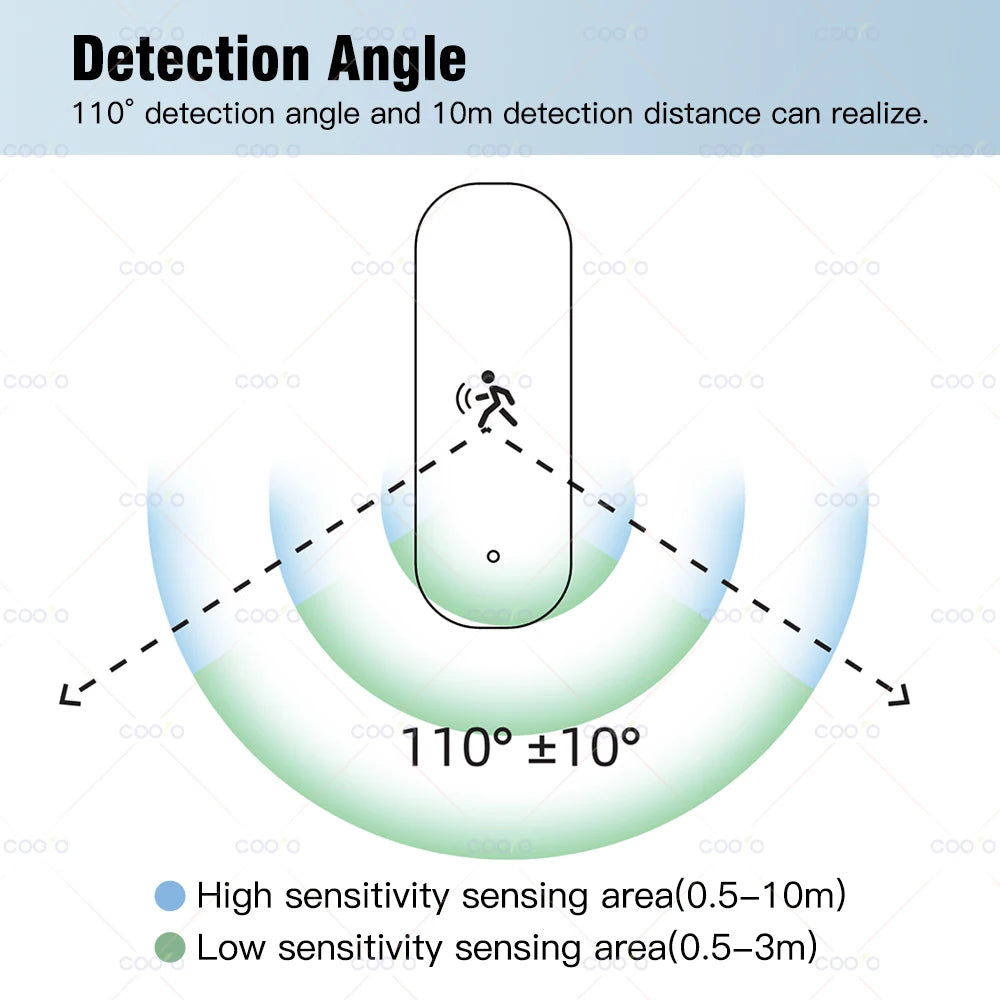

Detection Angle: 110°±10°

Detection Distance: 0.5~5meter(z axis)

Luminance Meter: 0~3000Lux

Temperature Resolution: 0.1°℃

Humidity Resolution: 1%

Temperature Measurement Accuracy: ±0.3°C

Humidity Measurement Accuracy: ±3%

Battery Type: 2pcs LR03 AAA(not included)

Standby Current: <80uA

Standby Time: >8 Months

Working Temperature: -10°C~55’℃

Working Humidity: max99%RH

Product Size: 70x24.5x20mm

Package Content

1* Human Motion sensor
1* Double-sided tape

1* Pin

1* User manual
