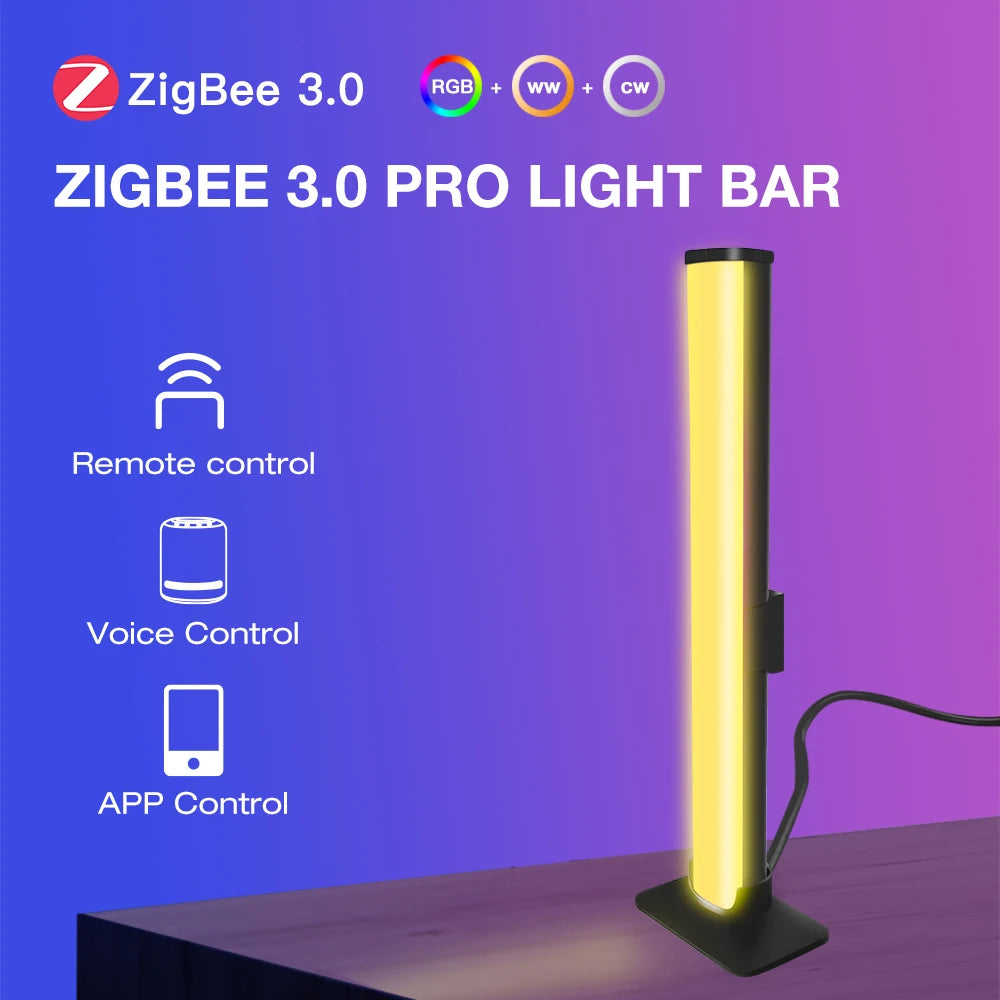

🌈 The exquisite and compact GLEDOPTO 4W ZigBee 3.0 Light Bar adopts high-quality RGBCCT LED lamp beads, which can achieve rich color presentation, and also support white light adjustment.
🌈 It uses USB DC5V power supply, which is very convenient, allows you to use it anytime, anywhere, and is also energy-saving and environmentally friendly.
🌈 This smart light bar is compatible with multiple smart home platforms, including Tuya, Smart Life, SmartThings, Homey, Alexa, etc., allowing you to control the lights through voice or APP.
🌈 You can use the APP or 2.4G wireless remote controller to control the GLEDOPTO 4W ZigBee 3.0 Light Bar anytime, anywhere, creating a warm and comfortable lighting atmosphere and meeting the needs of different scenes.
🌈 GLEDOPTO 4W ZigBee 3.0 Light Bar can also be used as a night light, providing a soft lighting effect, making your home more warm and comfortable.
Q&A or more info, please contact us on line, and we will answer you in time.
Product name: ZigBee 3.0 Pro Light Bar
Model NO.: GL-LB-001P
Rated voltage: DC 5V
Rated current: 800mA
Rated power: 4W
Luminous flux: 200LM
The input current(power supply): 1000mA
Material: PC+Aluminum
Working temperature: -20~45℃
N.W: 141.0g
G.W: 180.3g
Size:90mm*60mm*315mm
1pc* ZigBee Light Bar
1pc* Detachable Base
1pc*User Manual
In this manual we will explain the connection of wires and the connection with a ZigBee LightLink Gateway.
These devices works with many ZigBee Light Link Gateways* like , Amazon Echo Plus.
1.Turn off the Power.
2.Plug in the bulb.
3.Now you can connect it with the gateway.
1.Connect the LED product to the controller see section “Installation”.
2.Start the device searching on the ZigBee Light Link Gateway, it could take some time.
If the Gateway does not find the device, plug power off/on or make a reset.
3.The Gateway found your device and you can assign it to the different
rooms/zones/groups.
4.Now you can use the device.
1.Switch on your device.
2.Now switch off and on within 2 seconds.
3.Repeat off/on four times.
4.Reset is done when the device is switched on in the fifth time and the light stays on after
blinking 4 times
