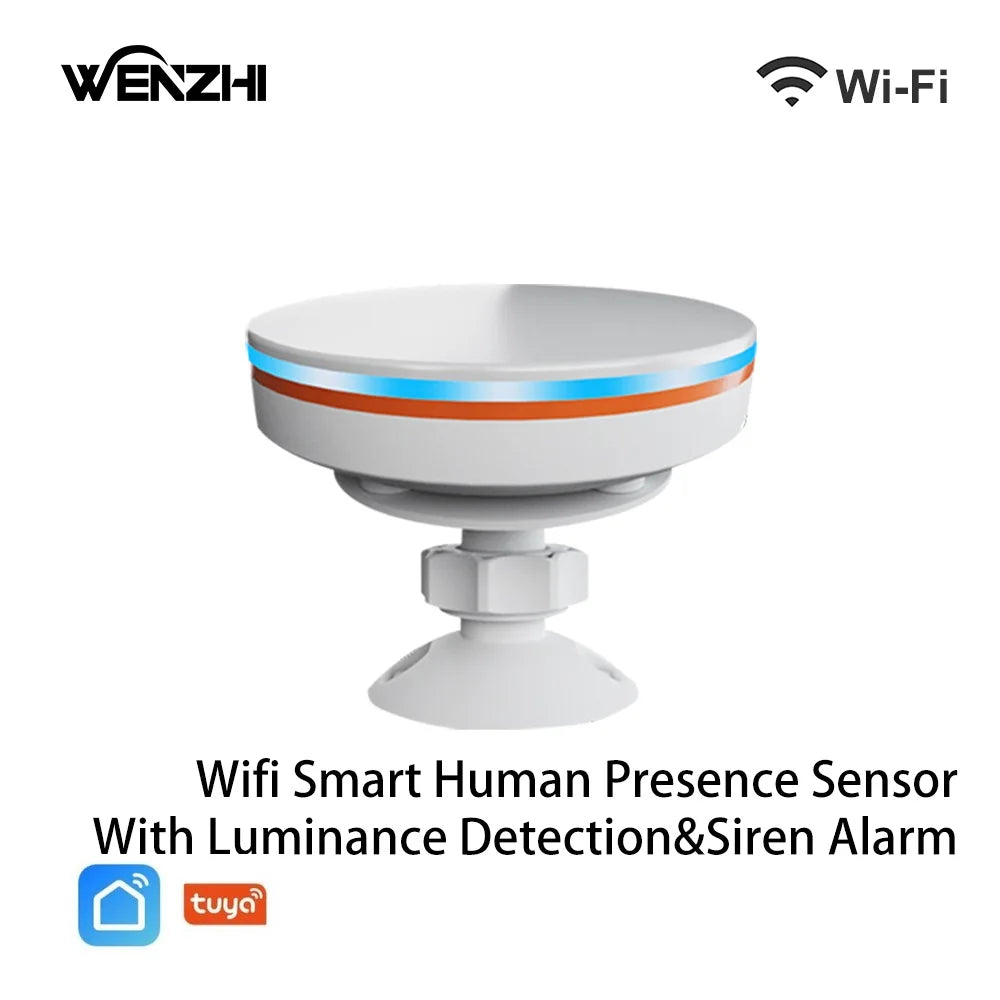

Zigbee 3.0/Wifi Human Presence Sensor 5V Mmwave Radar with Siren Alarm Motion Lux Detection Tuya/Smart Life Home Automation DIY

Zigbee 3.0/Wifi Human Presence Sensor 5V Mmwave Radar with Siren Alarm Motion Lux Detection Tuya/Smart Life Home Automation DIY

Regular price $60.08
Regular price $0.00 $60.08 Sale price
In stock

ZigBee 3.0/Wifi Human Presence Sensor 5V MMwave Radar With Siren Alarm Motion Lux Detection Tuya/Smart Life Home Automation

Main Features:

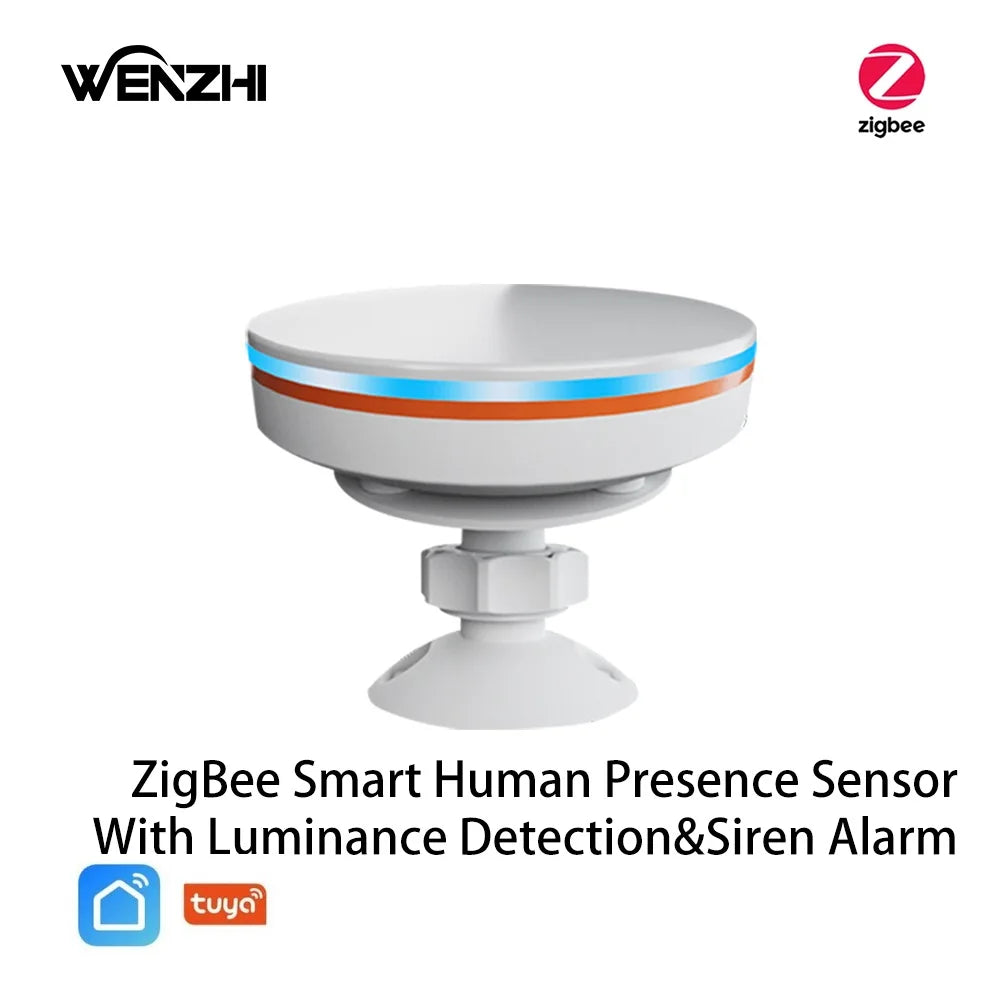

1.Functional ZigBee Smart Human Presence Sensor

Featured as human presence,human static,human micro motion and human movement motion detection to detect the presence or absence of people in the area,even to detect the static state such as personnel sleeping accurately with mmWave Radar Detection featured.

2. Perceived Light Intensity for Smart&Scene Linkage

Illuminance monitor in Tuya Smart APP enables its smart feature as smart scene linkage with other smart devices,especially your house lights to ON/OFF automatically as the brightness changes;Besides,you can intelligently linkage the sensor to other smart home devices for home automation.

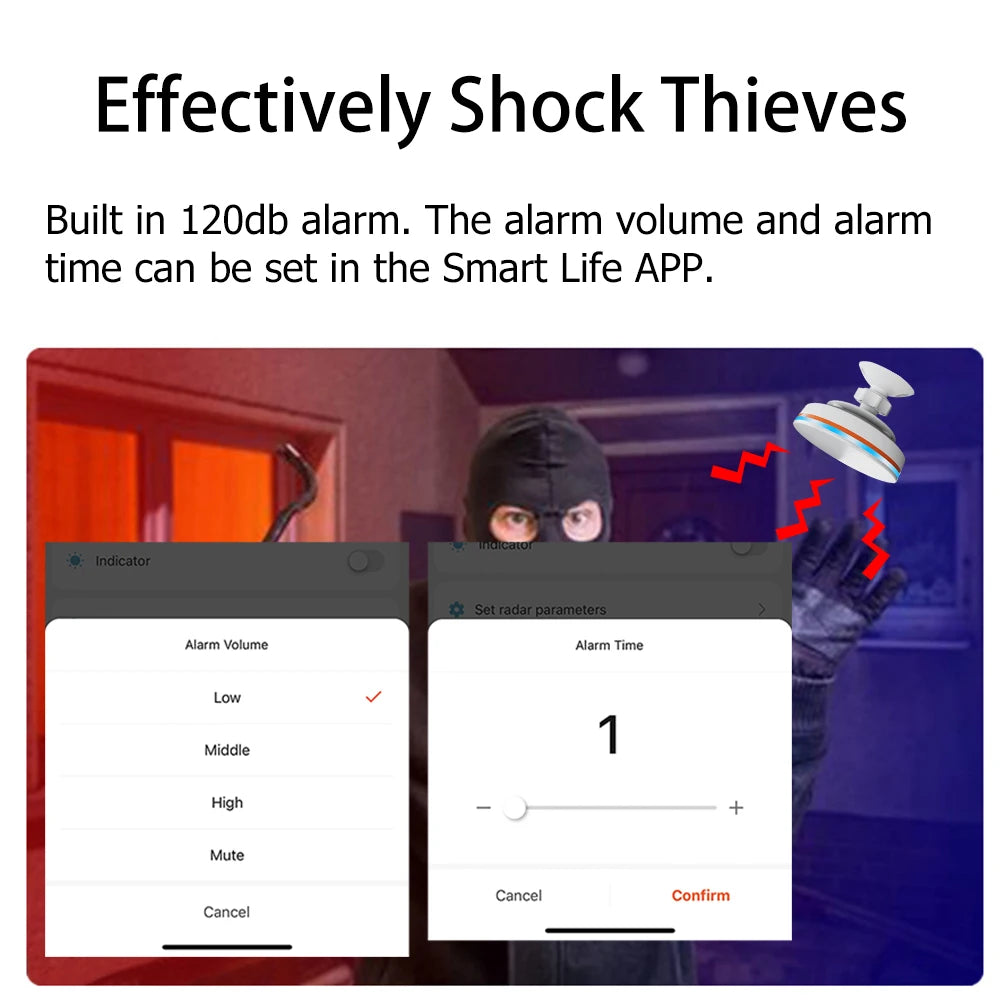

3.Safeguard your family safely. Built in 120db alarm.

There are three modes available on the APP homepage: Armed/Disarmed/Alarming. You can also set the alarm duration and volume in the APP. In Armed mode, the sensor detects the presence of a person and emits an alarm sound. If you don't want to hear the alarm sound, you can switch to Disarmed mode

4. Advanced New Design with Multiple Settings

In addition to setting alarm related parameters in the APP. It can also support setting the following parameters: Presence Keep Time/Indicator Status/Radar Parameters(Sensitivity and distance)/Motion False Detection.

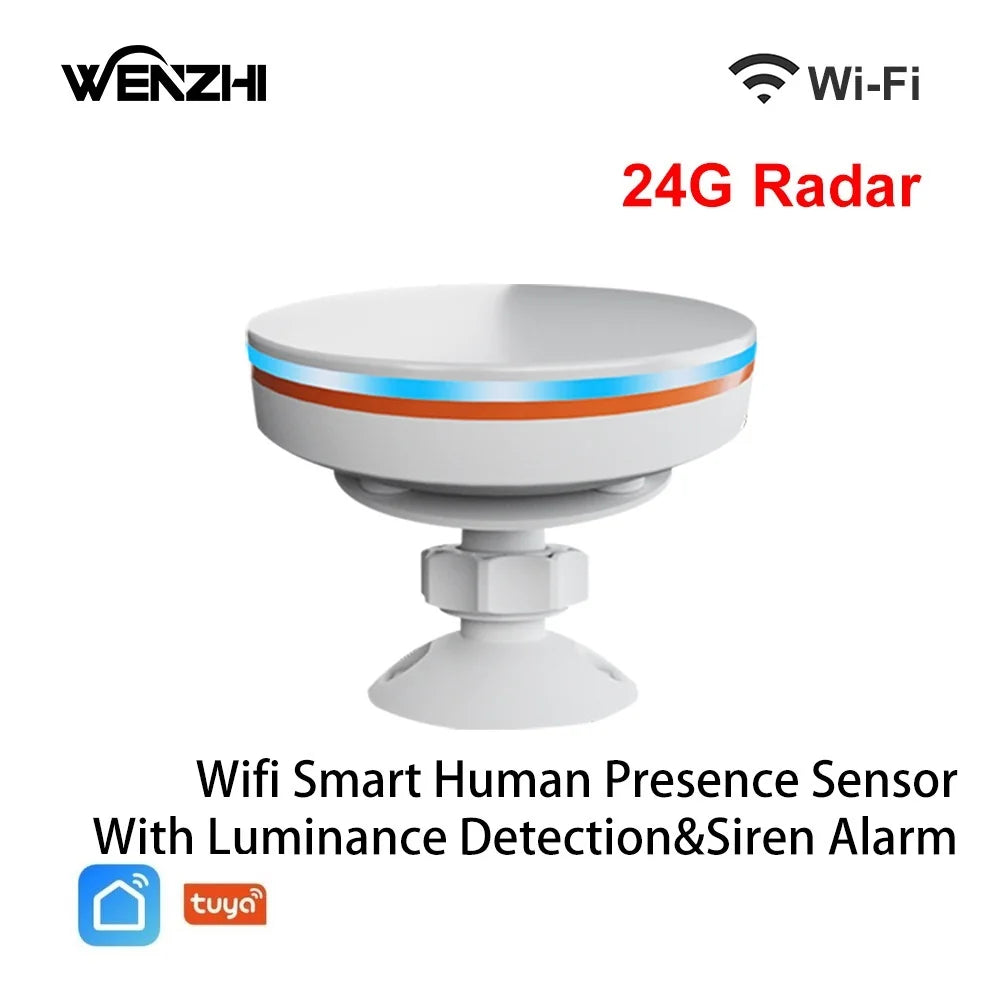

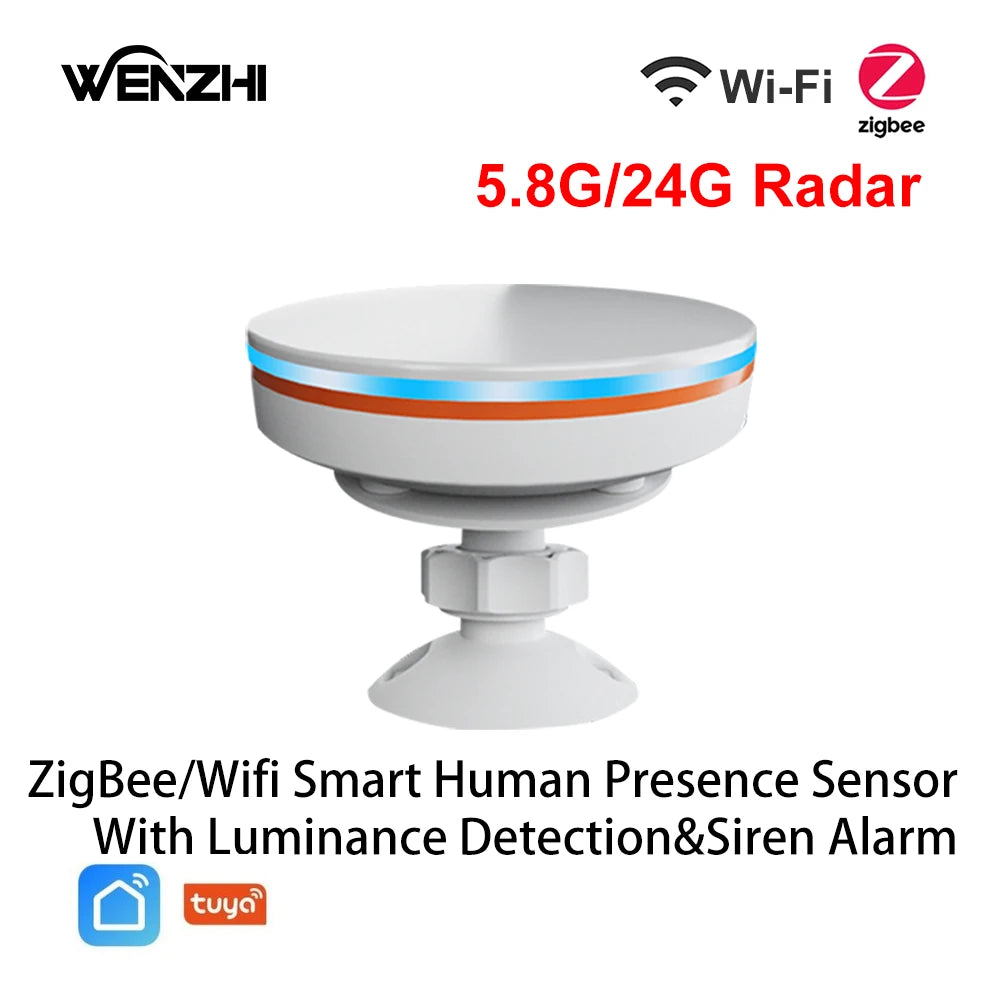

5. 5.8G/24G Radar Optional

What is the difference between 24G and 5.8G? The 24G version has lower false positive rates and more accurate features. In daily use, 5.8G is sufficient. However, in more complex usage environments, it is recommended to use the 24G version.

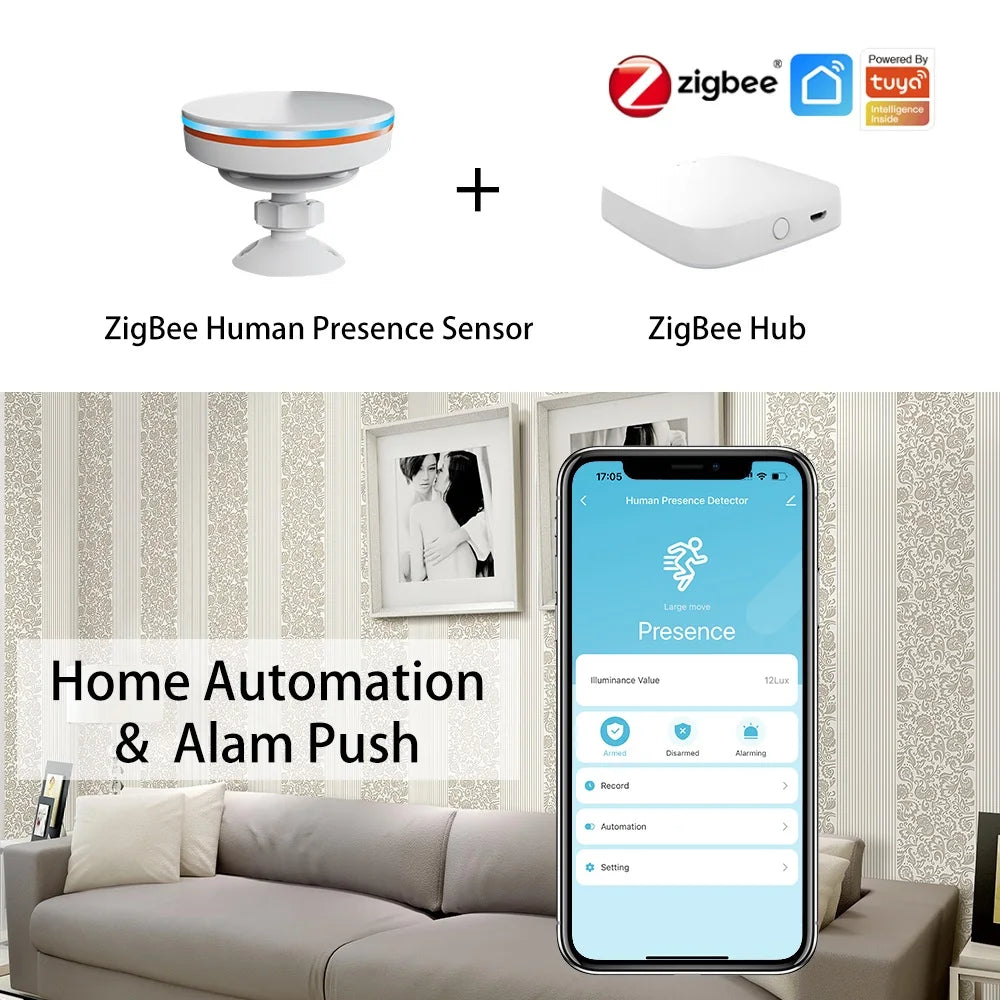

6. ZigBee Hub as Control Center

Tuya ZigBee gateway is required for this ZigBee human presence sensor,performing as the center bridge for all Tuya ZigBee smart devices with extremely stable signal and a really good necessity for whole-house intelligence.(note:Tuya ZigBee hub is highly recommended for its wider compatibility than other hubs)

Specifications:

Network: ZigBee / Wifi.
Radar: 5.8G With breath detection / 24G
Input: USB 5V
Siren Alarm Volume: Max 120db
Working temperature: -10℃~+55℃
Indicator Light:Red + Blue Indicator Light
Detection Angle:110°
Detection Distance: 6m/19.69ft
Illumination Value: 0~2000lux
Product Size: Φ85mm×27mm/Φ3.45inch×1.06inch

Package list:

Human presence sensor*1
User manual*1
2m USB Cable*1
Mounting screw packing
Reset needle*1

Armed/Disarmed/Alarming Mode:

Armed: When the sensor detects the presence of a person, it will sound an alarm. The alarm duration and volume level can be set in the Setting page.
Disarmed: When the sensor detects the presence of a person, the sensor will not emit an alarm sound.
Alarming: Regardless of whether the sensor detects the presence of a person. Manually activate the alarm sound.

Various Detection Functions

1. Fretting Detection: It can detect small movements such as tilting the head, waving, raising the hand, flicking the body, playing with the mobile phone, turning over the book, etc.
2. Presence Detection:It can detect the human body in the stationary state.
3.Motion Detection: It can detect walking, trotting, fast running, circling, jumping and other movements.
4.Breathing Detection: Sensors can detect the breathing of people within a certain range to determine the presence of people in the detection area. For example, while sleeping or reading.

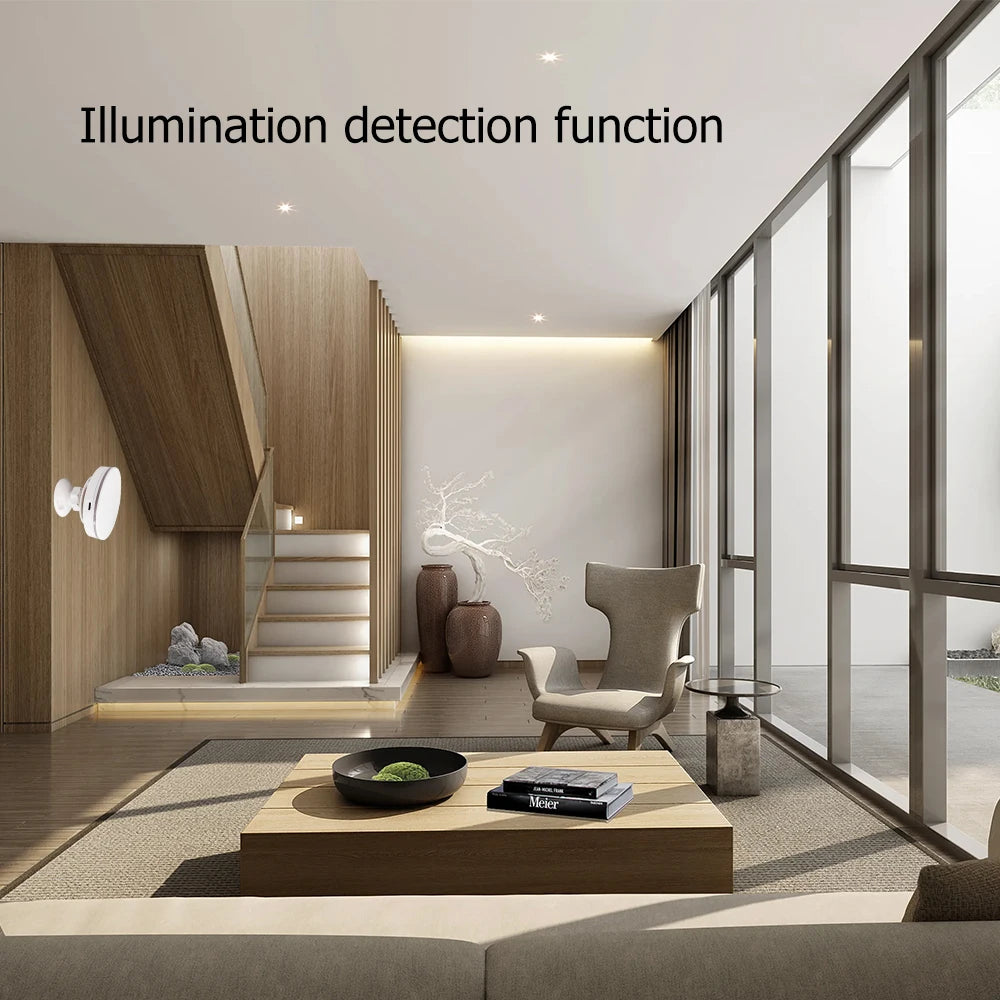

Illuminance detection

Detectable illuminance value

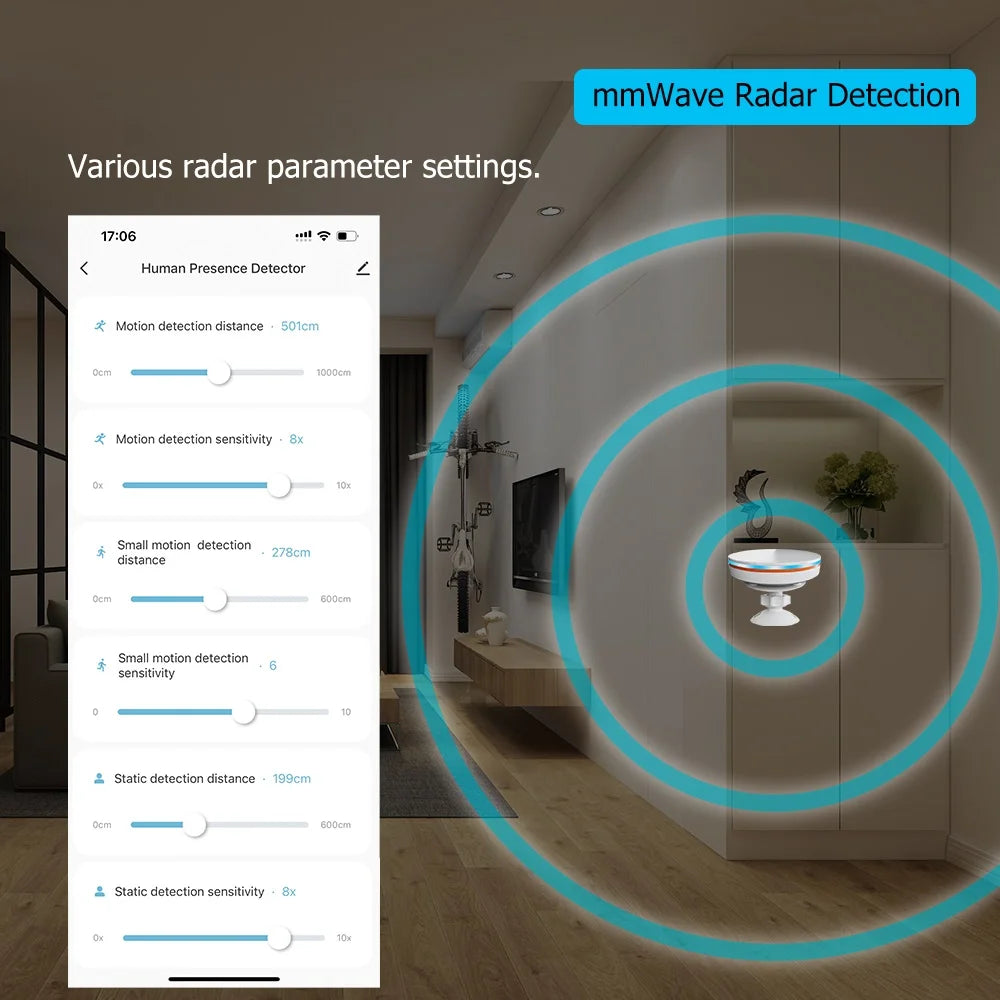

Adjustable Parameters

Various parameters such as detection distance can be set through app.

Product Description

①Illuminance sensor
②Radar sensing surface
③Indicator light
④Micro USB port
⑤Support mounting hole
⑥Loudspeaker
⑦SET button

Celling Mount Installation

1.Secure the mounting bracket to the ceiling using screws.
2.Buckle the device into the mounting chassis, rotate to secure it, press the mounting chassis into the support, and tighten it, as shown in the diagram on the right.
3. Adjust the radar sensing surface Angle and align it with the area to be detected.

Wall Mount Installation

Wall mount installation, can effectively reduce the product on the movement of small animals false detection.
1.Attach the mounting bracket to the wall using screws.
2.Buckle the device into the mounting chassis, rotate to secure it, press the mounting chassis into the support, and tighten it, as shown in the diagram on the below.
3.Adjust the radar sensing surface Angle and align it with the area to be detected.

Special Attention!

1.Do not expose radar sensing to jamming devices such as quasi-wireless routers.
2.Do not aim the radar at moving curtains.
3.2.You can set radar parameters on the APP according to the field environment, adjust the sensor detection distance.
